Texas Instruments recommends a layout with a solid ground plane, short traces, and minimal impedance mismatch to ensure high-frequency stability and low noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
The output filter should be chosen based on the specific application requirements. A 2nd-order Butterworth filter with a cutoff frequency of 10-20 times the signal bandwidth is a good starting point. The filter components should be chosen to minimize impedance mismatch and ensure stability.
The maximum power dissipation of OPA657UBG4 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions.
Yes, OPA657UBG4 can be used in a single-supply configuration, but it's not recommended. The device is optimized for dual-supply operation, and single-supply operation may result in reduced performance and increased distortion. If single-supply operation is necessary, a voltage divider or a virtual ground circuit can be used to create a pseudo-dual-supply configuration.
To troubleshoot oscillations or instability issues, check the PCB layout for any signs of impedance mismatch, parasitic inductance, or capacitance. Ensure that the input and output traces are properly terminated, and the power supply is clean and well-regulated. Also, check the device's operating conditions, such as temperature and power supply voltage, to ensure they are within the recommended specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA657UBG4 Overview

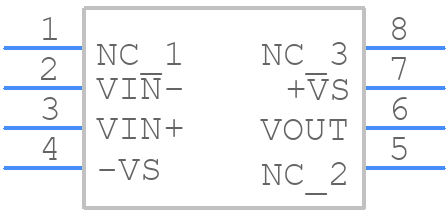

Use the download button to access the OPA657UBG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA65,
or try a keyword search, such as Operational Amplifiers
