- Part Number OPA658P
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - P (R-PDIP-T8)
- Released Date Nov 27, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
OPA658P Details
-
Manufacturer Part Number:
OPA658P
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
PLASTIC, DIP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
OPA658P Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a layout with a solid ground plane, short traces, and minimal impedance mismatch to ensure high-frequency stability and low noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
The output filter should be chosen based on the specific application requirements. A 2nd-order Butterworth filter with a cutoff frequency of 10-20 times the signal bandwidth is a good starting point. The filter components should be chosen to minimize impedance mismatch and ensure stability.
-
The OPA658P can drive capacitive loads up to 100nF, but it's recommended to limit the load to 10nF or less to ensure stability and prevent oscillations. A series resistor can be added to dampen the load and improve stability.
-
To reduce noise and EMI, use a low-noise power supply, decouple the power pins with 10uF and 100nF capacitors, and use a shielded enclosure. Additionally, keep the signal traces away from the power traces and use a ground plane to reduce radiation.
-
The OPA658P has a thermal derating of 13.9mW/°C above 25°C. This means that the maximum power dissipation decreases by 13.9mW for every degree Celsius above 25°C. Ensure proper heat sinking and thermal management to prevent overheating.
Trust Checks
Community Provided
System Verified
Community Approved
OPA658P Overview

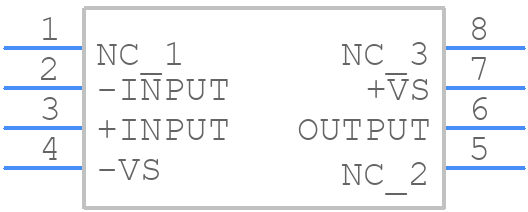

Use the download button to access the OPA658P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA65,
or try a keyword search, such as Operational Amplifiers
