For optimal performance, it is recommended to follow good PCB design practices, such as keeping the input and output traces short and away from noise sources, using a solid ground plane, and decoupling the power supply pins with 0.1uF capacitors. Additionally, the datasheet provides a recommended layout diagram that can be used as a starting point.
To prevent oscillations due to the high slew rate of the OPA680U, it is recommended to use a compensation capacitor (typically 10-100pF) between the output and the inverting input pins. This helps to reduce the phase shift and prevent oscillations. Additionally, ensuring a low-impedance output load and using a stable power supply can also help to prevent oscillations.
The OPA680U can drive capacitive loads up to 1nF without oscillating, but it is recommended to limit the capacitive load to 100pF or less to ensure stable operation. If a larger capacitive load is required, a series resistor can be added to dampen the load and prevent oscillations.
To protect the OPA680U from overvoltage and ESD damage, it is recommended to use voltage clamping devices such as TVS diodes or zener diodes on the input and output pins. Additionally, following proper ESD handling procedures and using ESD-protected workstations can help to prevent damage during handling and assembly.
The OPA680U has a thermal derating of 13.9mW/°C above 25°C. This means that the maximum power dissipation of the device decreases as the ambient temperature increases. To ensure reliable operation, the maximum power dissipation should be calculated based on the expected ambient temperature and the thermal derating factor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA680U Overview

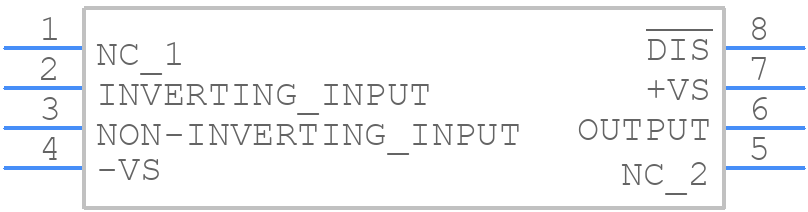

Use the download button to access the OPA680U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA68,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
