Texas Instruments recommends a layout with a solid ground plane, short traces, and minimal impedance mismatch. A 4-layer PCB with a dedicated analog ground plane is ideal. Additionally, keep the input and output traces separate and avoid crossing them over each other.
The output filter should be chosen based on the specific application requirements. A simple RC filter with a 100-ohm resistor and a 10-nF capacitor can be effective in reducing noise. For more demanding applications, a 2nd-order or 3rd-order filter may be necessary. TI provides a filter design tool to help with this process.
The maximum power dissipation of OPA690IDG4 is 1.4W. To ensure it doesn't overheat, provide adequate heat sinking, such as a copper pad on the PCB or a heat sink attached to the package. Also, ensure good airflow around the device and avoid operating it at maximum power for extended periods.
OPA690IDG4 is specified to operate from -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C. For high-temperature applications, consider using a thermally enhanced package or a different device specifically designed for high-temperature operation.
To troubleshoot oscillations or instability issues, check the PCB layout for any signs of noise coupling or impedance mismatch. Ensure that the input and output traces are properly terminated and that the power supply is clean and well-regulated. Also, verify that the device is operated within its specified bandwidth and that the gain and phase margins are adequate.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA690IDG4 Overview

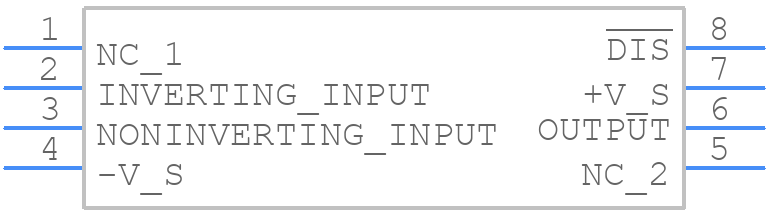

Use the download button to access the OPA690IDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA69,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
