A good PCB layout for OPA691IDBVR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
The choice of gain resistors depends on the desired gain and bandwidth. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific application requirements. It's also important to consider the resistor's tolerance, temperature coefficient, and parasitic capacitance.
The maximum power dissipation of OPA691IDBVR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated at higher temperatures.
To protect OPA691IDBVR from EMI, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, use a low-pass filter or a shielded cable to reduce radiated emissions.
The recommended input termination for OPA691IDBVR is a 50Ω resistor to match the impedance of the input signal. The output termination depends on the load impedance, but a 50Ω resistor is a good starting point. It's also important to consider the impedance of the PCB traces and the load capacitance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA691IDBVR Overview

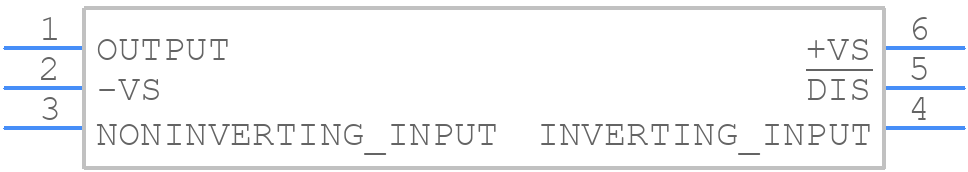

Use the download button to access the OPA691IDBVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA69,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
