Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and separate, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The output capacitor should be chosen based on the desired closed-loop bandwidth, output impedance, and stability requirements. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum output voltage of the op-amp. X7R or X5R ceramic capacitors are recommended due to their low equivalent series resistance (ESR) and high reliability.
The maximum power dissipation of OPA692IDR is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance. The maximum power dissipation is typically around 1.4W at 25°C ambient temperature.
Yes, OPA692IDR is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the power dissipation and ensure proper heat sinking to maintain a safe operating temperature.
To protect OPA692IDR from EMI, use a shielded enclosure, keep the input and output traces short and separate, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, use a low-pass filter or a shielding material to reduce radiated EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA692IDR Overview

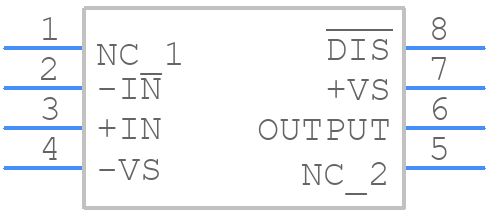

Use the download button to access the OPA692IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA69,
or try a keyword search, such as Buffer Amplifiers
