- Part Number OPA693IDRG4
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D
- Released Date Nov 16, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
OPA693IDRG4 Details
-
Manufacturer Part Number:
OPA693IDRG4
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
GREEN, PLASTIC, SOIC-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
OPA693IDRG4 Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a layout with a solid ground plane, short traces, and minimal impedance mismatch to minimize noise and ensure stability. A 4-layer PCB with a dedicated analog ground plane is recommended.
-
To ensure stability, ensure the op-amp is operated within its recommended operating conditions, use a compensation capacitor (if required), and minimize parasitic capacitance and inductance in the circuit. Also, check for oscillations and ringing in the output waveform.
-
The maximum power dissipation of OPA693IDRG4 is 1.4W. However, this can be limited by the thermal resistance of the package and the PCB. Ensure proper thermal management to prevent overheating.
-
Yes, OPA693IDRG4 is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures, and the maximum power dissipation may need to be derated. Consult the datasheet for temperature-related specifications.
-
Use proper ESD handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Also, ensure the PCB has adequate ESD protection, such as TVS diodes or ESD protection arrays, to prevent damage to the op-amp.
Trust Checks
Community Provided
System Verified
Community Approved
OPA693IDRG4 Overview

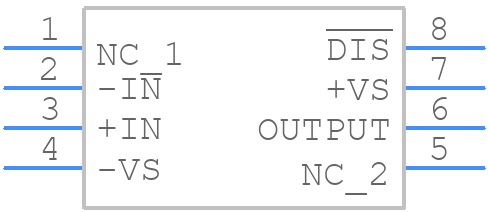

Use the download button to access the OPA693IDRG4 schematic symbol, PCB footprint, and 3D model.
