A good PCB layout for OPA698IDG4 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability in high-gain configurations, use a compensation capacitor (Cc) between the output and the inverting input. The value of Cc depends on the gain and bandwidth requirements. A good starting point is 2-5pF. Additionally, ensure that the feedback resistors are matched and the layout is symmetrical.
The maximum power dissipation of OPA698IDG4 is 1.4W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout). Ensure that the device is operated within the recommended operating conditions to avoid overheating.
Yes, OPA698IDG4 can be used as a unity-gain buffer. However, ensure that the input impedance is matched to the source impedance, and the output is properly terminated to avoid oscillations. Additionally, consider the input bias current and offset voltage when using the device as a buffer.
OPA698IDG4 has internal ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an anti-static bag or tube.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA698IDG4 Overview

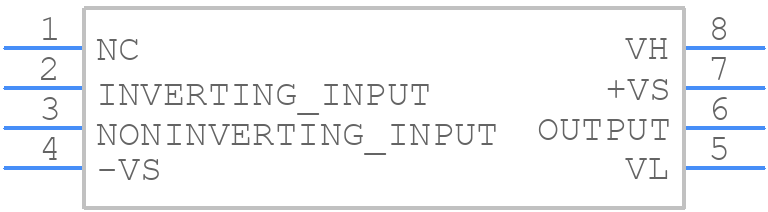

Use the download button to access the OPA698IDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA69,
or try a keyword search, such as Operational Amplifiers
