OPA818IDRGT - Texas Instruments

Description: Operational Amplifiers - Op Amps 2.7-GHz, 13-V, decompensated 7-V/V, FET-input operational amplifier 8-SON -40 to 125

Download OPA818IDRGT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

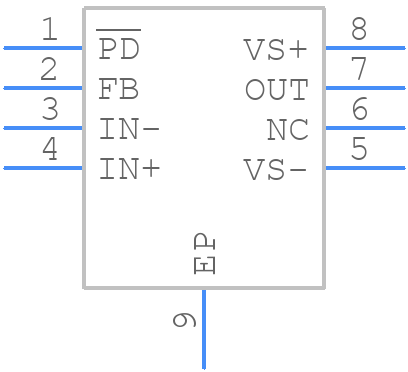

OPA818IDRGT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRG (S-PWSON-N8)_1
click to zoom
3D Models
OPA818IDRGT - Texas Instruments  - 3D model - Small Outline No-lead - DRG (S-PWSON-N8)_1
click to zoom

OPA818IDRGT Details

  • Manufacturer Part Number:

    OPA818IDRGT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-05-23

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0005 µA

  • Bias Current-Max (IIB) @25C:

    0.000025 µA

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1250 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -6.75 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    1400 V/us

  • Supply Current-Max:

    29 mA

  • Supply Voltage Limit-Max:

    6.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2700000

  • Voltage Gain-Min:

    17782.79

  • Wideband:

    YES

  • Width:

    3 mm
