Texas Instruments provides a recommended PCB layout in the OPA820 datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, the TI website has a PCB layout tutorial and a layout checklist that can be helpful.
The output capacitor selection depends on the specific application and the desired frequency response. A general rule of thumb is to choose a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum output voltage of the op-amp. The datasheet provides more detailed guidance on output capacitor selection.
The maximum power dissipation of the OPA820IDBVTG4 is dependent on the ambient temperature and the package type. The datasheet provides a power dissipation calculation formula, which takes into account the supply voltage, output current, and package thermal resistance. Engineers can use this formula to calculate the maximum power dissipation for their specific application.
Yes, the OPA820IDBVTG4 can be used as a unity-gain buffer. However, engineers should be aware of the potential for oscillation and instability in this configuration. The datasheet provides guidance on how to stabilize the op-amp in a unity-gain buffer configuration, including the use of a compensation capacitor and a series resistor.
The OPA820IDBVTG4 has internal ESD protection, but engineers should still take precautions to protect the device from input overvoltage and ESD damage. This can include the use of input voltage limiting resistors, TVS diodes, and ESD protection devices. The datasheet provides more detailed guidance on input overvoltage protection and ESD protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA820IDBVTG4 Overview

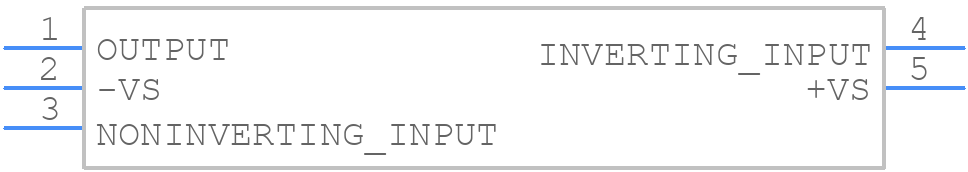

Use the download button to access the OPA820IDBVTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA82,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
