A good PCB layout for the OPA830ID involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins. Additionally, it's recommended to use a low-ESR capacitor for the bypass capacitor (e.g., 10nF) and to keep the analog and digital grounds separate.
The gain resistors (Rf and Rg) should be chosen based on the desired gain and bandwidth requirements. A higher gain requires smaller resistors, but may compromise bandwidth. A good starting point is to use Rf = Rg = 1kΩ for a gain of 1. The OPA830ID datasheet provides a gain resistor calculator to help with the selection.
The maximum power dissipation of the OPA830ID is 1.4W. To ensure you don't exceed it, calculate the power dissipation using the formula: Pd = (Vcc x Icc) + (Vout x Iout). Make sure to keep the junction temperature (TJ) below 150°C. Use a thermal pad or heat sink if necessary, and ensure good airflow around the device.
To minimize EMI and RFI, use a shielded enclosure, keep the OPA830ID away from noise sources, and use a common-mode choke or ferrite bead on the input lines. Add a 10nF capacitor between the input pins and ground to filter high-frequency noise. Use a twisted pair or shielded cable for input and output connections.
Common pitfalls include incorrect pinout, insufficient decoupling, and poor PCB layout. To troubleshoot, check the power supply voltage, input and output signals, and decoupling capacitors. Use an oscilloscope to visualize the signals and identify noise or distortion. Consult the datasheet and application notes for guidance on troubleshooting and optimization.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA830ID Overview

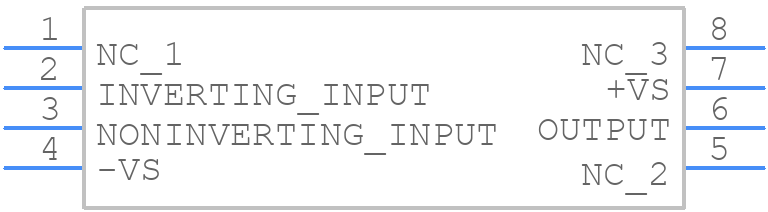

Use the download button to access the OPA830ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA83,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
