Texas Instruments provides a recommended PCB layout in the OPA832IDBVR datasheet, which includes guidelines for component placement, trace routing, and grounding. Following this layout can help minimize noise, reduce parasitic inductance, and ensure optimal performance.
The choice of input and output capacitors depends on the specific application and frequency range of interest. In general, X7R or X5R ceramic capacitors with a value of 10nF to 100nF are suitable for most applications. The datasheet provides more detailed guidance on capacitor selection.
The maximum power dissipation of OPA832IDBVR is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a formula to calculate the maximum power dissipation based on the junction temperature, ambient temperature, and thermal resistance.
OPA832IDBVR is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consult the datasheet and perform thermal analysis to ensure the device operates within its specified limits.
To reduce noise and EMI, use proper PCB layout techniques, such as separating analog and digital grounds, using shielding, and minimizing trace lengths. Additionally, consider using filters, such as RC filters or ferrite beads, to reduce high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA832IDBVR Overview

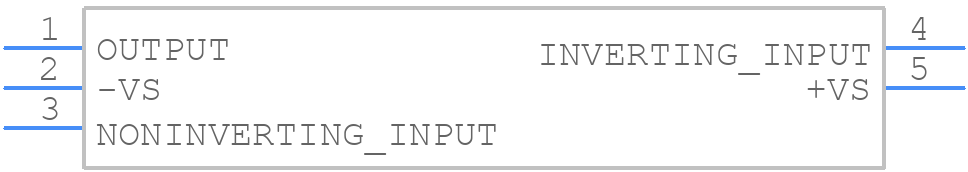

Use the download button to access the OPA832IDBVR schematic symbol, PCB footprint, and 3D model.
