The maximum power dissipation of the OPA842ID is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
To ensure stability, it's essential to follow proper PCB layout practices, minimize parasitic capacitance, and use a compensation capacitor (if necessary) as recommended in the datasheet. Additionally, consider using a phase margin analyzer tool to verify stability.
The recommended input common-mode voltage range for the OPA842ID is between VCC- and VCC+, but not exceeding the maximum differential input voltage of ±5.5V. Exceeding this range may cause incorrect operation or damage to the device.
While the OPA842ID can be used as a comparator, it's not the most suitable device for this application. The OPA842ID is an op-amp designed for high-speed, low-noise applications, and its output stage is not optimized for comparator-like behavior. Consider using a dedicated comparator IC for comparator applications.
To prevent electrostatic discharge (ESD) damage, handle the OPA842ID by the body, not the pins. Use an ESD wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the device pins or exposing them to static electricity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA842ID Overview

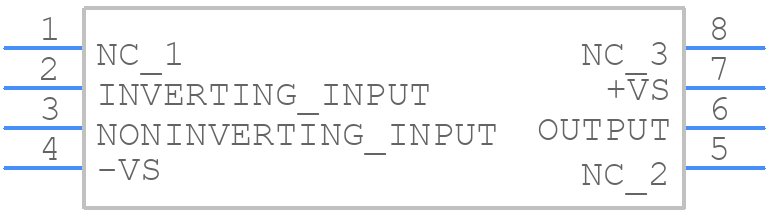

Use the download button to access the OPA842ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA84,
or try a keyword search, such as Operational Amplifiers
