Texas Instruments recommends a layout with a symmetrical, star-grounded configuration, with the op-amp inputs and outputs routed away from each other and from the power supply lines. A solid ground plane and decoupling capacitors close to the op-amp are also recommended.
The gain resistors should be chosen based on the desired gain, bandwidth, and noise requirements. A good starting point is to use the gain resistor values recommended in the datasheet, and then adjust them based on simulation and measurement results. It's also important to consider the resistor tolerance and temperature coefficient.
The OPA843IDR can drive capacitive loads up to 1nF, but it's recommended to limit the load capacitance to 100pF or less to ensure stability and prevent oscillations. If a larger capacitive load is required, a series resistor or a buffer stage may be necessary.
To reduce noise and EMI, use a low-noise power supply, decouple the op-amp with capacitors, and use a shielded enclosure or a metal can package. Additionally, route the signal lines away from the power supply lines and use a ground plane to reduce radiation. Filtering the input and output signals can also help reduce noise and EMI.
The thermal shutdown temperature of OPA843IDR is typically around 150°C, but it can vary depending on the specific device and operating conditions. It's recommended to consult the datasheet and application notes for more information on thermal management and shutdown.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA843IDR Overview

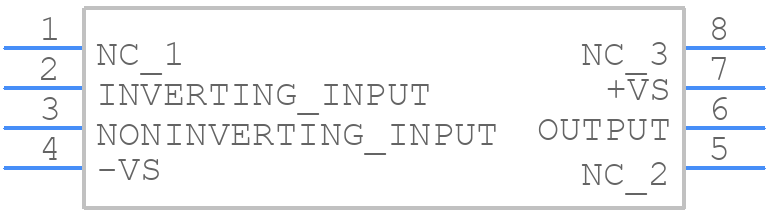

Use the download button to access the OPA843IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA84,
or try a keyword search, such as Operational Amplifiers
