Texas Instruments provides a recommended PCB layout in the OPA847 datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, the TI website has a PCB layout tutorial and a layout checklist that can be helpful.
The output capacitor should be chosen based on the desired closed-loop bandwidth, output impedance, and stability requirements. A general rule of thumb is to choose a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum output voltage of the op-amp.
The maximum power dissipation of the OPA847IDBVTG4 is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a power dissipation calculation formula, which takes into account the supply voltage, output current, and thermal resistance. The maximum power dissipation is typically around 1.4W at 25°C.
Yes, the OPA847IDBVTG4 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the input signal, and that the output impedance is low enough to drive the load. Additionally, the op-amp's bandwidth and slew rate should be sufficient for the desired frequency response.
The OPA847IDBVTG4 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures when working with the device. This includes using an ESD wrist strap, ESD mat, and ESD-safe tools, as well as avoiding direct contact with the device pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA847IDBVTG4 Overview

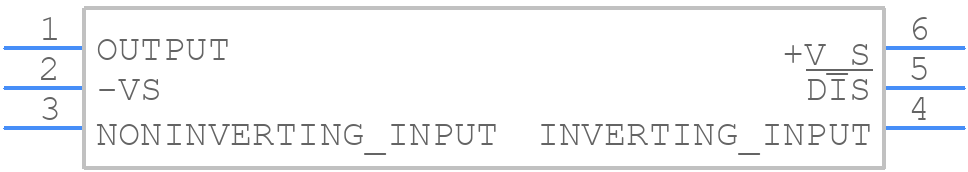

Use the download button to access the OPA847IDBVTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA84,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
