A good PCB layout for the OPA855IDSGT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a symmetrical layout to minimize thermal gradients.
The choice of gain resistors for the OPA855IDSGT depends on the desired gain and bandwidth. A higher gain resistor value will result in a higher gain but may reduce the bandwidth. It's recommended to use 1% or 0.1% tolerance resistors to ensure accuracy and stability. TI provides a gain resistor calculator tool to help with the selection process.
The OPA855IDSGT has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, especially in high-power or high-temperature applications. A thermal pad or heat sink can be used to dissipate heat, and the device should be operated within the recommended temperature range.
To filter out noise and interference, it's recommended to use a combination of passive and active filtering techniques. A low-pass filter can be used to remove high-frequency noise, while a common-mode filter can be used to reject electromagnetic interference (EMI). Additionally, using a shielded enclosure and keeping the circuit away from noise sources can help minimize interference.
The OPA855IDSGT has built-in ESD protection, but it's still essential to take precautions to prevent damage from electrostatic discharge. This includes using ESD-safe handling and storage procedures, using an ESD wrist strap or mat, and ensuring that the device is properly grounded during handling and assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA855IDSGT Overview

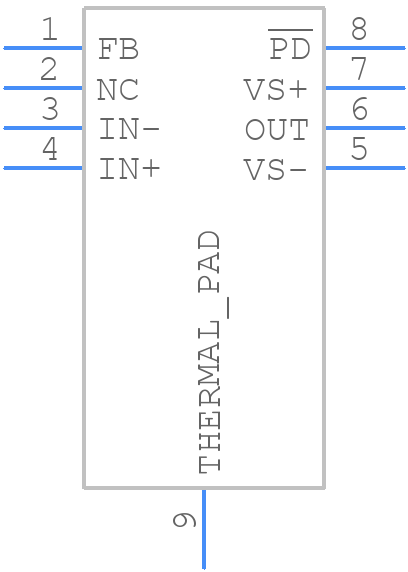

Use the download button to access the OPA855IDSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA85,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
