Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and separate, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability, it's essential to follow the recommended compensation network and component values, and to keep the gain resistors close to the op-amp inputs. Additionally, the output capacitor should be chosen to ensure a stable phase margin. TI provides a stability calculator tool to help with this.
The maximum power dissipation of OPA857IRGTR is 1.4W. To calculate it, you need to consider the output current, supply voltage, and package thermal resistance. TI provides a power dissipation calculator tool to help with this. It's essential to ensure the device operates within the recommended power dissipation to avoid overheating and reliability issues.
OPA857IRGTR is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. TI recommends derating the power dissipation and output current at higher temperatures to ensure reliable operation. Additionally, the device's electrical characteristics may vary with temperature, so it's essential to consider this in the design.
To protect OPA857IRGTR from EMI and RFI, use a shielded enclosure, keep the device away from noise sources, and use filtering and shielding on the input and output lines. Additionally, use a low-pass filter or a ferrite bead on the power supply lines to reduce high-frequency noise. TI provides guidelines for EMI and RFI protection in their application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA857IRGTR Overview

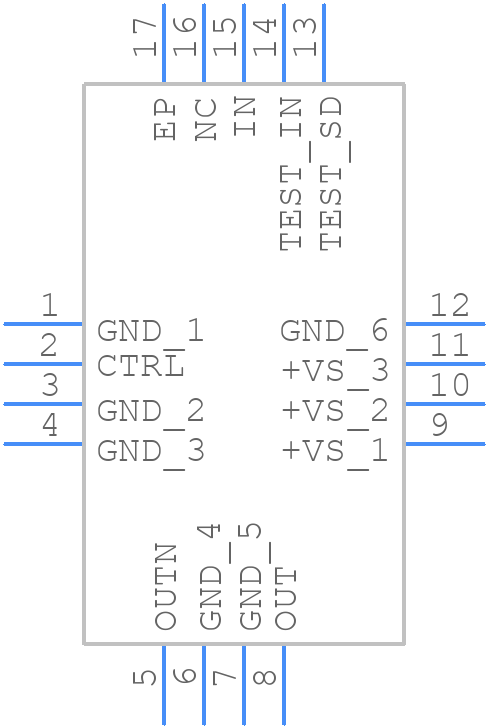

Use the download button to access the OPA857IRGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA85,
or try a keyword search, such as Operational Amplifiers
