The maximum power dissipation of the OPA860ID is 1.4W, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 90°C/W.
To ensure stability, it's recommended to use a compensation capacitor (CC) between the output and the inverting input pins. The value of CC depends on the gain and bandwidth requirements, but a typical value is around 10-22pF.
To minimize noise and EMI, it's recommended to use a star-ground configuration, keep the input and output traces short and away from each other, and use a ground plane to shield the device. Additionally, decoupling capacitors should be placed close to the device pins.
While the OPA860ID can be used as a comparator, it's not the most suitable device for this application. The OPA860ID is an op-amp designed for high-speed and high-gain applications, and it may not provide the same level of accuracy and reliability as a dedicated comparator.
The OPA860ID has a relatively high input bias current (IB) of around 10nA. To handle this, it's recommended to use a high-impedance input source, such as a voltage divider or a buffer amplifier, and to ensure that the input impedance is much higher than the input bias current.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA860ID Overview

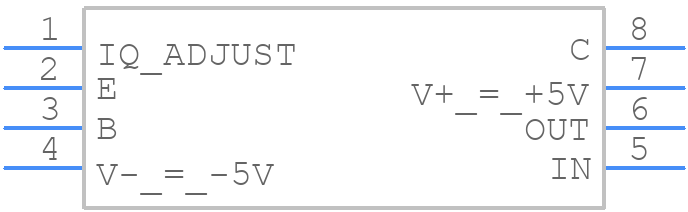

Use the download button to access the OPA860ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA86,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
