Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and away from each other, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability in high-gain configurations, it's essential to follow the recommended compensation network and layout guidelines. Additionally, consider using a lower gain or adding a feedback capacitor to reduce the phase shift and improve stability. You can also use the TI's SPICE models to simulate and optimize your design.
The maximum power dissipation of OPA862IDTKR is dependent on the ambient temperature and the thermal resistance of the package. You can calculate the maximum power dissipation using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance. The maximum power dissipation is typically around 1.4W at 25°C ambient temperature.
Yes, OPA862IDTKR can be used in a single-supply configuration. To do so, you'll need to bias the input and output to a voltage that's within the common-mode range of the op-amp. You can use a voltage divider or a resistive network to set the bias voltage. Additionally, you may need to add a pull-down resistor to the output to ensure proper operation.
To protect OPA862IDTKR from EMI and RFI, use a shielded enclosure, and ensure that the PCB layout is designed to minimize radiation and susceptibility. You can also use EMI filters, such as ferrite beads or common-mode chokes, to filter out high-frequency noise. Additionally, consider using a low-pass filter or a shielded cable to connect the input and output signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA862IDTKR Overview

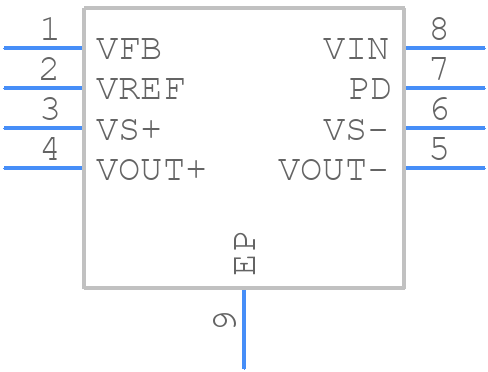

Use the download button to access the OPA862IDTKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA86,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
