OPT101P-JG4 - Texas Instruments

Description: Optical Sensor Ambient 650nm Voltage 8-SMD, Gull Wing

Download OPT101P-JG4 Model

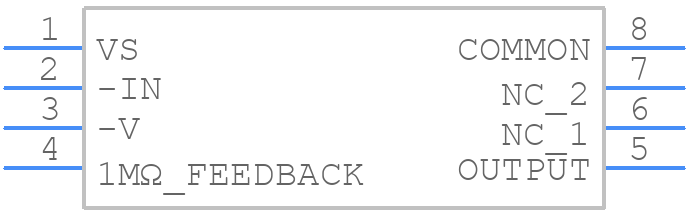

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPT101P-JG4 - Texas Instruments PCB footprint - Other - Other - DTL0008A
click to zoom

OPT101P-JG4 Details

  • Manufacturer Part Number:

    OPT101P-JG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    0.090 X 0.090 INCH, PLASTIC, SOP-8

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Application:

    AMPLIFIER

  • Configuration:

    SINGLE

  • Infrared Range:

    NO

  • JESD-609 Code:

    e4

  • Number of Functions:

    1

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LINEAR OUTPUT PHOTO IC

  • Packing Method:

    TUBE

  • Shape:

    SQUARE

  • Size:

    2.29 mm

  • Supply Voltage-Min:

    2.7 V

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Pitch:

    2.54 mm

OPT101P-JG4 Frequently Asked Questions (FAQs)

  • A good PCB layout for the OPT101P-JG4 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal source. Additionally, using a 4-layer PCB with a dedicated analog layer can help reduce noise and improve performance.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, and consider using a calibration resistor network to fine-tune the gain and offset. Additionally, consider using a precision voltage reference to improve accuracy.
  • The maximum allowable input voltage for the OPT101P-JG4 is ±10V. To protect the device from overvoltage, use a voltage limiter or a clamp circuit to prevent input voltages exceeding the maximum rating. Additionally, consider using a voltage regulator to regulate the input voltage.
  • To minimize the effect of temperature, use a thermally stable voltage reference, and consider using a temperature compensation circuit. Additionally, ensure good thermal management by providing adequate heat sinking and airflow around the device.
  • Use a combination of ceramic and electrolytic capacitors to decouple the power supply, with a minimum of 10uF of capacitance per supply pin. Place the capacitors close to the device and use a low-ESR capacitor for the analog supply.
