OPT101PG4 - Texas Instruments

Description: Light To Frequency & Light To Voltage Transimpedance Amp

Download OPT101PG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

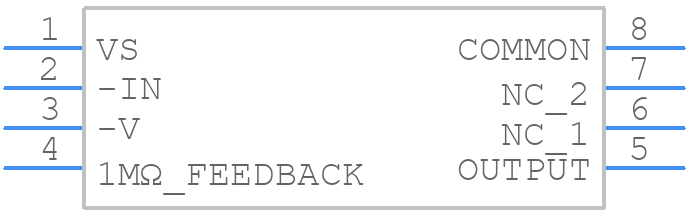

OPT101PG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
OPT101PG4 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - NTC (R-PDIP-T8)
click to zoom
3D Models
OPT101PG4 - Texas Instruments - 3D model - Dual-In-Line Packages - NTC (R-PDIP-T8)
click to zoom

OPT101PG4 Details

  • Manufacturer Part Number:

    OPT101PG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    0.090 X 0.090 INCH, GREEN, PLASTIC, DIP-8

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Application:

    AMPLIFIER

  • Configuration:

    SINGLE

  • Infrared Range:

    NO

  • JESD-609 Code:

    e4

  • Number of Functions:

    1

  • Operating Temperature-Max:

    70 °C

  • Optoelectronic Device Type:

    LINEAR OUTPUT PHOTO IC

  • Packing Method:

    TUBE

  • Shape:

    SQUARE

  • Size:

    2.29 mm

  • Supply Voltage-Min:

    2.7 V

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Pitch:

    2.54 mm

OPT101PG4 Frequently Asked Questions (FAQs)

  • A good PCB layout for the OPT101PG4 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. TI provides a recommended layout in the datasheet and application notes.
  • The OPT101PG4 has a output voltage swing of 0 to 4.096V. To handle this, use a voltage divider or an op-amp to condition the output signal to match the input requirements of the ADC or microcontroller.
  • The OPT101PG4 has a temperature coefficient of ±0.05%/°C. This means that the output voltage will change by ±0.05% for every 1°C change in temperature. This can be compensated for using temperature sensors and calibration techniques.
  • Yes, the OPT101PG4 can be used with a single supply voltage. However, the output voltage swing will be limited to the supply voltage minus the headroom voltage (typically 1.5V). Use a voltage regulator to ensure a stable supply voltage.
  • Calibration involves adjusting the zero-point and span of the OPT101PG4 to match the specific application requirements. This can be done using external resistors, potentiometers, or digital calibration techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OPT101PG4 Overview

Use the download button to access the OPT101PG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPT10, or try a keyword search, such as Photo ICs

About Texas Instruments
