OPT3001IDNPRQ1 - Texas Instruments

Description: Ambient Light Sensors Automotive Digital Ambient Light Sensor (ALS) With High-Precision Human-Eye Response 6-USON -40 to 85

Download OPT3001IDNPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

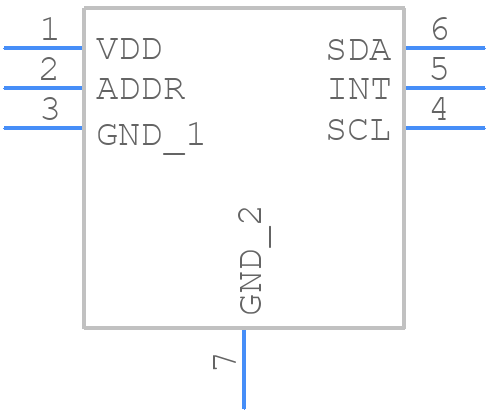

OPT3001IDNPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
OPT3001IDNPRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - OPT3001IDNPRQ1-1
click to zoom
3D Models
OPT3001IDNPRQ1 - Texas Instruments - 3D model - Small Outline No-lead - OPT3001IDNPRQ1-1
click to zoom

OPT3001IDNPRQ1 Details

  • Manufacturer Part Number:

    OPT3001IDNPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Body Breadth:

    2 mm

  • Body Height:

    0.65 mm

  • Body Length or Diameter:

    2 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.32

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    AMBIENT LIGHT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

OPT3001IDNPRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the OPT3001IDNPRQ1 involves placing the device near the light source, using a solid ground plane, and keeping the analog and digital traces separate to minimize noise.
  • Calibration involves adjusting the gain and offset registers to match the specific light source and application. TI provides a calibration guide and software tools to help with this process.
  • The optimal sampling rate depends on the application, but a rate of 1-10 Hz is typical for most ambient light sensing applications. Faster sampling rates may be needed for faster-changing light conditions.
  • The OPT3001IDNPRQ1 has a built-in IR filter, but it's not perfect. Additional IR filtering may be needed depending on the specific application and IR light sources present.
  • No, the OPT3001IDNPRQ1 is designed specifically for visible light detection and is not suitable for UV or other non-visible light detection.
