A good PCB layout practice is to keep the OPT3004DTSR away from other components that may interfere with the ambient light sensing, and to use a solid ground plane under the device to reduce noise. Additionally, it is recommended to use a small keep-out area around the device to prevent other components from casting shadows on the sensor.
The OPT3004DTSR is sensitive to IR light, but it can be filtered out using an IR-cut filter or a UV-IR cut filter. The datasheet provides a recommended filter specification, and TI also offers a filter solution, the REF-OPT3004-FILT, specifically designed for the OPT3004DTSR.
The OPT3004DTSR does not require calibration in the classical sense, but it is recommended to perform a one-time offset calibration to account for any manufacturing variations. This can be done by taking a single measurement in a known ambient light condition and storing the result as a reference point for future measurements.
The OPT3004DTSR has a built-in temperature compensation mechanism that corrects for temperature-related variations in the sensor's response. However, it is still important to consider the operating temperature range of the device (–40°C to 85°C) and to ensure that the device is operated within its specified temperature range for accurate measurements.
The OPT3004DTSR has built-in EMI protection, but it is still important to follow good PCB design practices to minimize EMI effects. Additionally, TI recommends using a shielded cable or a twisted pair cable to connect the device to the microcontroller or other components to reduce EMI susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPT3004DTSR Overview

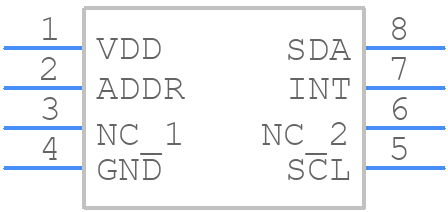

Use the download button to access the OPT3004DTSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPT30,
or try a keyword search, such as Other Sensors/Transducers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
