OPT3005DTSR - Texas Instruments

Description: Ambient Light Sensors Ambient light sensor (ALS) for video surveillance cameras 8-SOT-5X3 -40 to 85

Download OPT3005DTSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

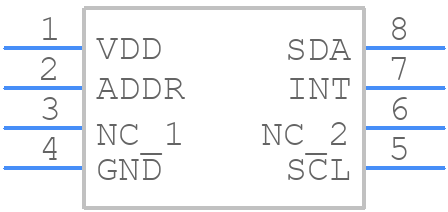

OPT3005DTSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
OPT3005DTSR - Texas Instruments PCB footprint - Other - Other - DTS0008A
click to zoom
3D Models
OPT3005DTSR - Texas Instruments - 3D model - Other - DTS0008A
click to zoom

OPT3005DTSR Details

  • Manufacturer Part Number:

    OPT3005DTSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Input type : Light

  • Body Breadth:

    1.2 mm

  • Body Height:

    0.6 mm

  • Body Length or Diameter:

    2.1 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.0018 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Type:

    DIGITAL VOLATGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    AMBIENT LIGHT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

OPT3005DTSR Frequently Asked Questions (FAQs)

  • A good PCB layout for the OPT3005DTSR involves placing the device near the edge of the PCB, away from other components, and using a solid ground plane to minimize noise. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • Calibration involves adjusting the gain and offset of the device to match the specific application's requirements. This can be done by taking readings in a known light source and adjusting the gain and offset registers accordingly.
  • The recommended power-up sequence is to apply VDD first, followed by VLOGIC, and then the EN pin. This ensures that the internal voltage regulators are powered up correctly.
  • The output data from the OPT3005DTSR is in 16-bit format and represents the ambient light level in lux. To get accurate readings, the output data should be scaled and compensated for temperature using the provided formulas in the datasheet.
  • The OPT3005DTSR is rated for operation from -40°C to 85°C. However, the device's accuracy and performance may degrade at extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OPT3005DTSR Overview

Use the download button to access the OPT3005DTSR schematic symbol, PCB footprint, and 3D model.
