Part Image

OPT4048DTSR - Texas Instruments

Description: Ambient Light Sensors High-speed high-precision tristimulus XYZ color sensor 8-SOT-5X3 -40 to 85

Download OPT4048DTSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

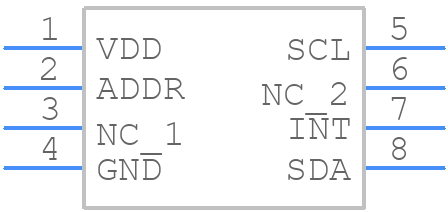

Symbol
OPT4048DTSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
OPT4048DTSR - Texas Instruments PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - DTS0008A
click to zoom
3D Models
OPT4048DTSR - Texas Instruments - 3D model - SO Transistor Flat Lead - DTS0008A
click to zoom

OPT4048DTSR Details

  • Manufacturer Part Number:

    OPT4048DTSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Input type : Light

  • Body Breadth:

    1.2 mm

  • Body Height:

    0.6 mm

  • Body Length or Diameter:

    2.1 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    FL8,.04,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    COLOR SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

OPT4048DTSR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to keep the input and output traces as short as possible.
  • To ensure accuracy, it's essential to follow the recommended PCB layout, use a high-quality voltage reference, and minimize noise and interference on the input and output lines. Additionally, calibrating the device during manufacturing or using a calibration routine can help improve accuracy.
  • The OPT4048DTSR is rated for operation from -40°C to 125°C, but it's recommended to derate the device for temperatures above 85°C to ensure reliable operation.
  • Yes, the OPT4048DTSR is designed to withstand vibrations up to 10g peak acceleration, but it's recommended to follow proper PCB mounting and assembly techniques to ensure the device remains securely attached to the board.
  • Texas Instruments recommends using ESD protection devices such as TVS diodes or ESD arrays on the input and output lines to protect the OPT4048DTSR from electrostatic discharge. Additionally, following proper handling and storage procedures can help prevent ESD damage.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

OPT4048DTSR Overview

Use the download button to access the OPT4048DTSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPT40, or try a keyword search, such as Other Sensors/Transducers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
