OPT4060DTSR - Texas Instruments

Description: Ambient Light Sensors High-speed high-sensitivity RGBW color sensor 8-SOT-5X3 -40 to 85

Download OPT4060DTSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

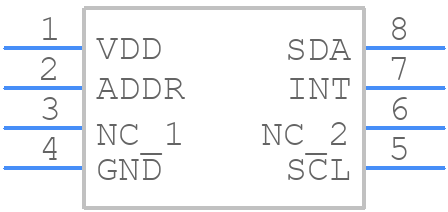

OPT4060DTSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
OPT4060DTSR - Texas Instruments PCB footprint - Other - Other - DTS0008A_2024
click to zoom
3D Models
OPT4060DTSR - Texas Instruments - 3D model - Other - DTS0008A_2024
click to zoom

OPT4060DTSR Details

  • Manufacturer Part Number:

    OPT4060DTSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Body Breadth:

    1.2 mm

  • Body Height:

    0.6 mm

  • Body Length or Diameter:

    2 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    COLOR SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

OPT4060DTSR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Additionally, the input and output traces should be kept short and away from noise sources.
  • The OPT4060DTSR requires a bias voltage of 2.5V to 5V on the VCC pin, and the input signal should be biased around the midpoint of the supply voltage to ensure optimal linearity.
  • The maximum input signal amplitude that the OPT4060DTSR can handle is ±10V, but it's recommended to keep the input signal amplitude below ±5V to ensure optimal performance and linearity.
  • To reduce noise and jitter, use a low-noise power supply, keep the input and output traces short and away from noise sources, and use a bypass capacitor on the VCC pin. Additionally, consider using a low-pass filter on the output signal to remove high-frequency noise.
  • The OPT4060DTSR is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the device's performance and consider using a heat sink or thermal management system in high-temperature applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OPT4060DTSR Overview

Use the download button to access the OPT4060DTSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPT40, or try a keyword search, such as Other Sensors/Transducers
