Part Image

OQ0312500000G - Amphenol

Description: Pluggable Terminal Blocks 3P 3.50MM HDR STRT PLUGGABLE TERM BLK

Download OQ0312500000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OQ0312500000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

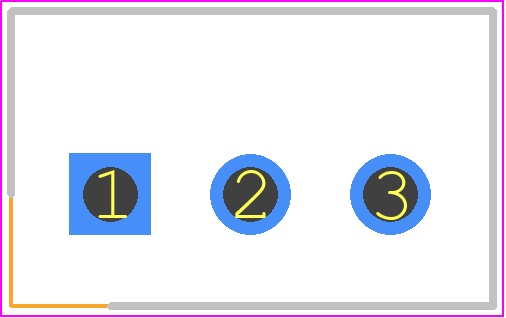

OQ0312500000G - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - OQ0312500000G
click to zoom
3D Models
OQ0312500000G - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - OQ0312500000G
click to zoom

OQ0312500000G Details

  • Manufacturer Part Number:

    OQ0312500000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0; POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

OQ0312500000G Frequently Asked Questions (FAQs)

  • The recommended torque value for the OQ0312500000G connector is 0.5-1.5 Nm (4-12 in-lbs) for the screw locks, and 1-2 Nm (8-16 in-lbs) for the jack screws.
  • Yes, the OQ0312500000G connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the OQ0312500000G connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and humidity rating of 95% RH at 40°C.
  • The OQ0312500000G connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
  • Yes, the OQ0312500000G connector is RoHS and REACH compliant, meeting the requirements of EU Directive 2011/65/EU and Regulation (EC) No 1907/2006.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OQ0312500000G Overview

Use the download button to access the OQ0312500000G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OQ031, or try a keyword search, such as Terminals and Terminal Blocks

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
