Part Image

OQ0832500000G - Amphenol

Description: Conn Shrouded Header HDR 8 POS 3.81mm Solder ST Top Entry Thru-Hole

Download OQ0832500000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OQ0832500000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

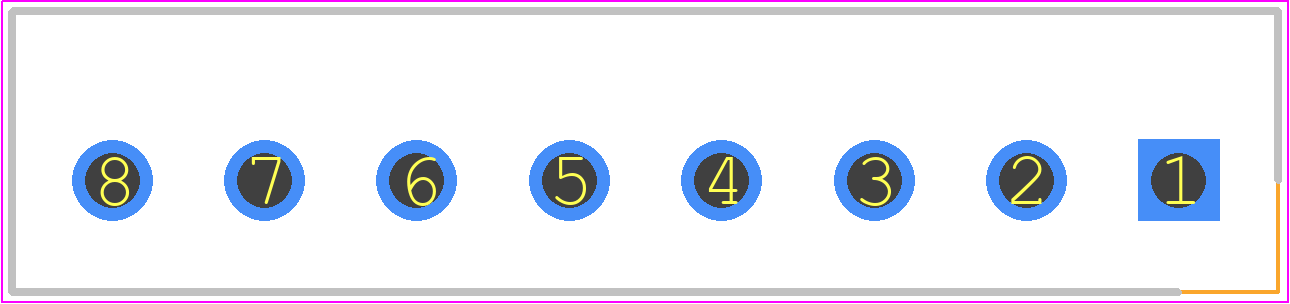

OQ0832500000G - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - OQ0832500000G
click to zoom
3D Models
OQ0832500000G - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - OQ0832500000G
click to zoom

OQ0832500000G Details

  • Manufacturer Part Number:

    OQ0832500000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: 94V-0, POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

OQ0832500000G Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of OQ0832500000G is 0.5-0.7 Nm (5-7 in-lbs).
  • Yes, the OQ0832500000G is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, defense, and industrial automation.
  • Yes, the OQ0832500000G is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity up to 95% RH.
  • The OQ0832500000G has a mating cycle life of 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the OQ0832500000G is part of Amphenol's OQ series, which is designed to be compatible with other Amphenol products, including cable assemblies and adapters.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OQ0832500000G Overview

Use the download button to access the OQ0832500000G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OQ083, or try a keyword search, such as Terminals and Terminal Blocks

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
