OQ0853510000G - Amphenol

Description: 8 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole

Download OQ0853510000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OQ0853510000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

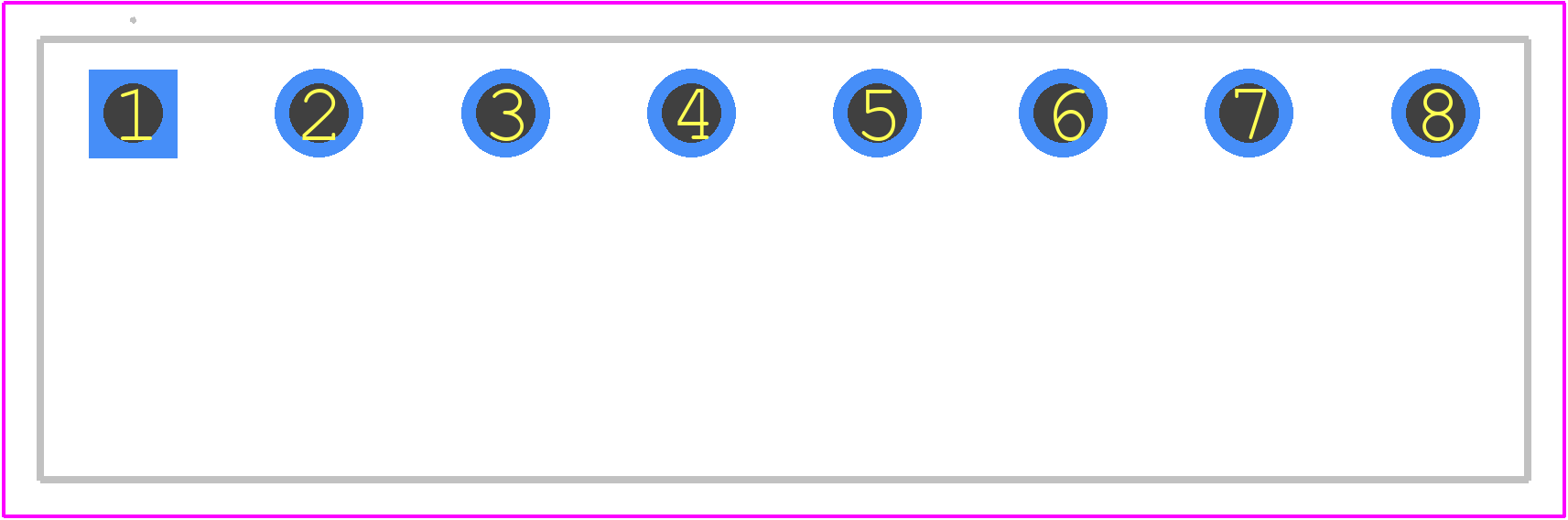

OQ0853510000G - Amphenol PCB footprint - Other - Other - OQ0853510000G-4
click to zoom
3D Models
OQ0853510000G - Amphenol - 3D model - Other - OQ0853510000G-4
click to zoom

OQ0853510000G Details

  • Manufacturer Part Number:

    OQ0853510000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYBUTYLENE TEREPHTHALATE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; TUV; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

OQ0853510000G Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4-12 in-lbs) for the screw threads, and 1.5-3.5 Nm (12-28 in-lbs) for the coupling nut.
  • Yes, the OQ0853510000G connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the OQ0853510000G connector is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and humidity rating of 95% RH at 40°C.
  • The OQ0853510000G connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles.
  • Yes, the OQ0853510000G connector is RoHS and REACH compliant, meeting the requirements of EU directives 2011/65/EU and (EC) No 1907/2006.
