OQ1232500000G - Amphenol

Description: Pluggable Terminal Blocks 12P 3.81MM HDR STR PLUGGABLE TERM BLK

Download OQ1232500000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
OQ1232500000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

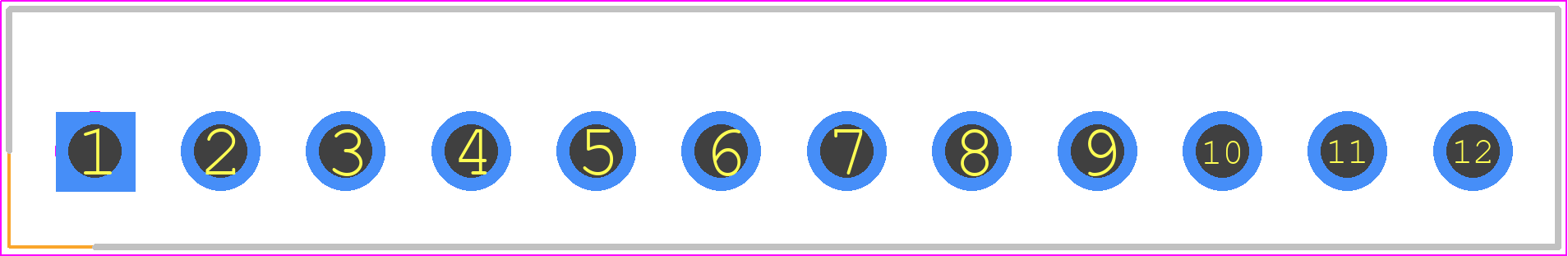

OQ1232500000G - Amphenol PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - HEADER 1X12
click to zoom
3D Models
OQ1232500000G - Amphenol - 3D model - Header, Shrouded - Straight PTH Box - HEADER 1X12
click to zoom

OQ1232500000G Details

  • Manufacturer Part Number:

    OQ1232500000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7.97

  • Additional Feature:

    STANDARD: 94V-0, POLYETHYLENE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

OQ1232500000G Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, the OQ1232500000G is designed to withstand high-vibration environments. Amphenol's OQ series connectors are built with a ruggedized design and have undergone rigorous testing to ensure reliability in harsh conditions.
  • The OQ1232500000G is part of Amphenol's OQ series, which is a modular connector system. While it's designed to be compatible with other OQ series connectors, it's essential to verify compatibility with specific part numbers and configurations to ensure proper mating and performance.
  • The OQ1232500000G has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial automation to automotive and aerospace.
  • The OQ1232500000G has a IP67 rating, which means it's designed to withstand exposure to dust and water. However, it's essential to follow proper sealing and installation procedures to ensure the connector remains watertight in humid or wet environments.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

OQ1232500000G Overview

Use the download button to access the OQ1232500000G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OQ123, or try a keyword search, such as Terminals and Terminal Blocks

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
