OSL20541-IR - OptoSupply

Description: 0.54 inch dual digit display Number of Pins:18

Download OSL20541-IR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this OSL20541-IR model

Email notifications will be applied after download.

Send part feedback

Symbol

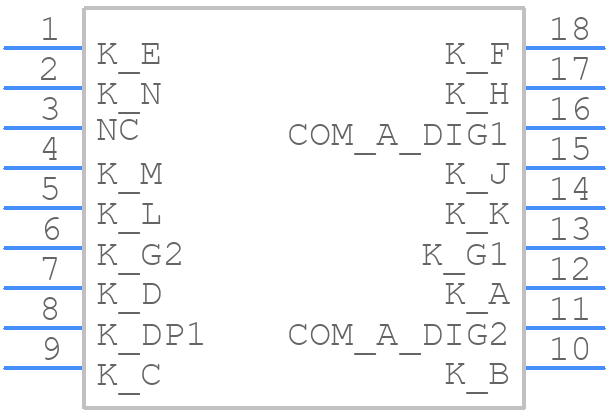

OSL20541-IR - OptoSupply - PCB symbol

PCB Footprints

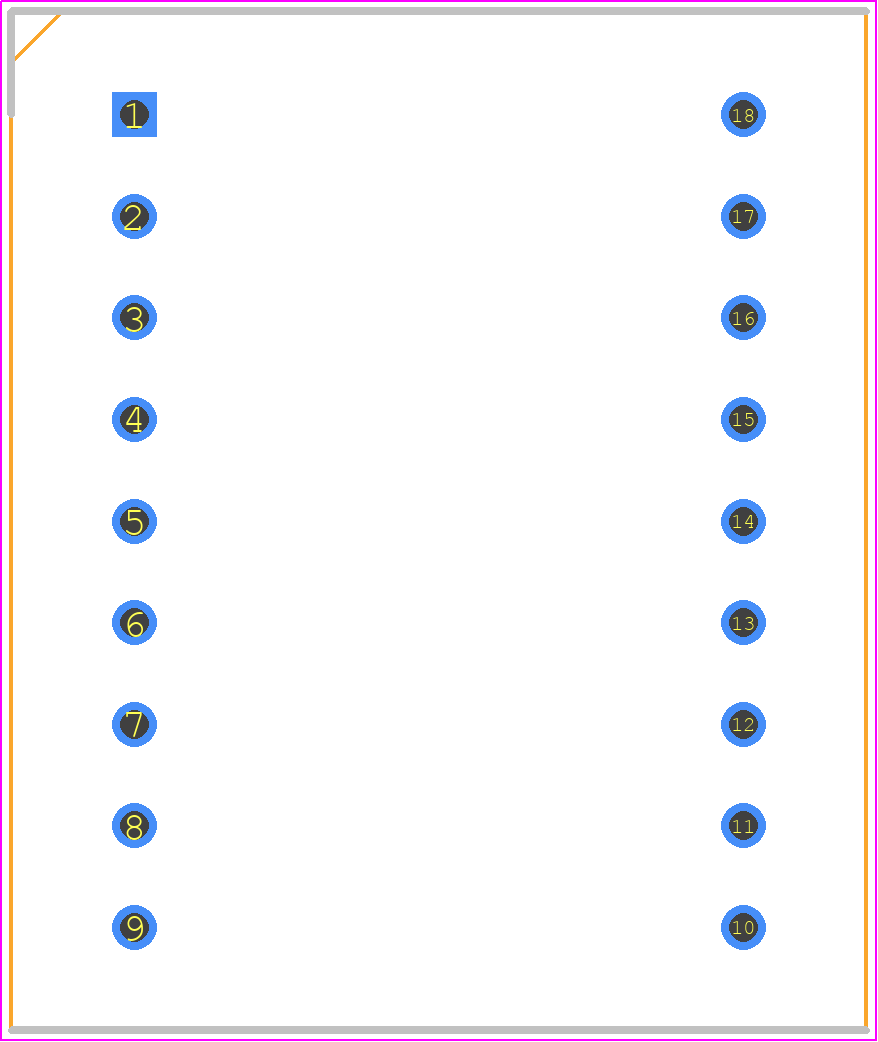

OSL20541-IR - OptoSupply PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-18

Datasheet Download Datasheet
Stock & Prices Price & Stock for OSL20541-IR
Part Number OSL20541-IR
Manufacturer OptoSupply
Pin Count 18
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DIP-18
Released Date Jul 17, 2024
Last Modified Date Jul 17, 2024 4:20 AM UTC
Pinout / Pin List Click Here (Member Only)

OSL20541-IR Details

Manufacturer Part Number:
OSL20541-IR
Manufacturer:
OptoSupply Limited

Trust Checks

Community Provided

System Verified

Community Approved

OSL20541-IR Overview

Use the download button to access the OSL20541-IR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like OSL20, or try a keyword search, such as Visible LEDs
