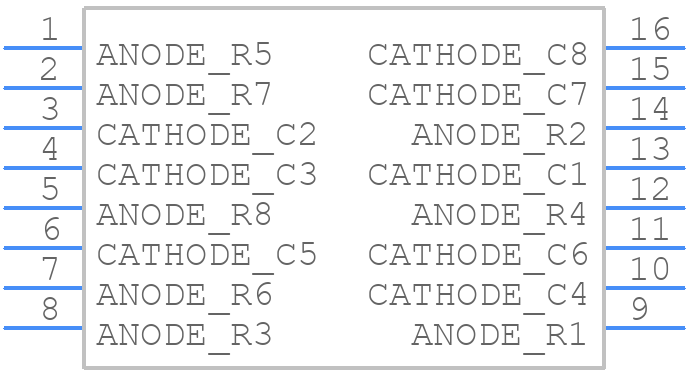

Symbol

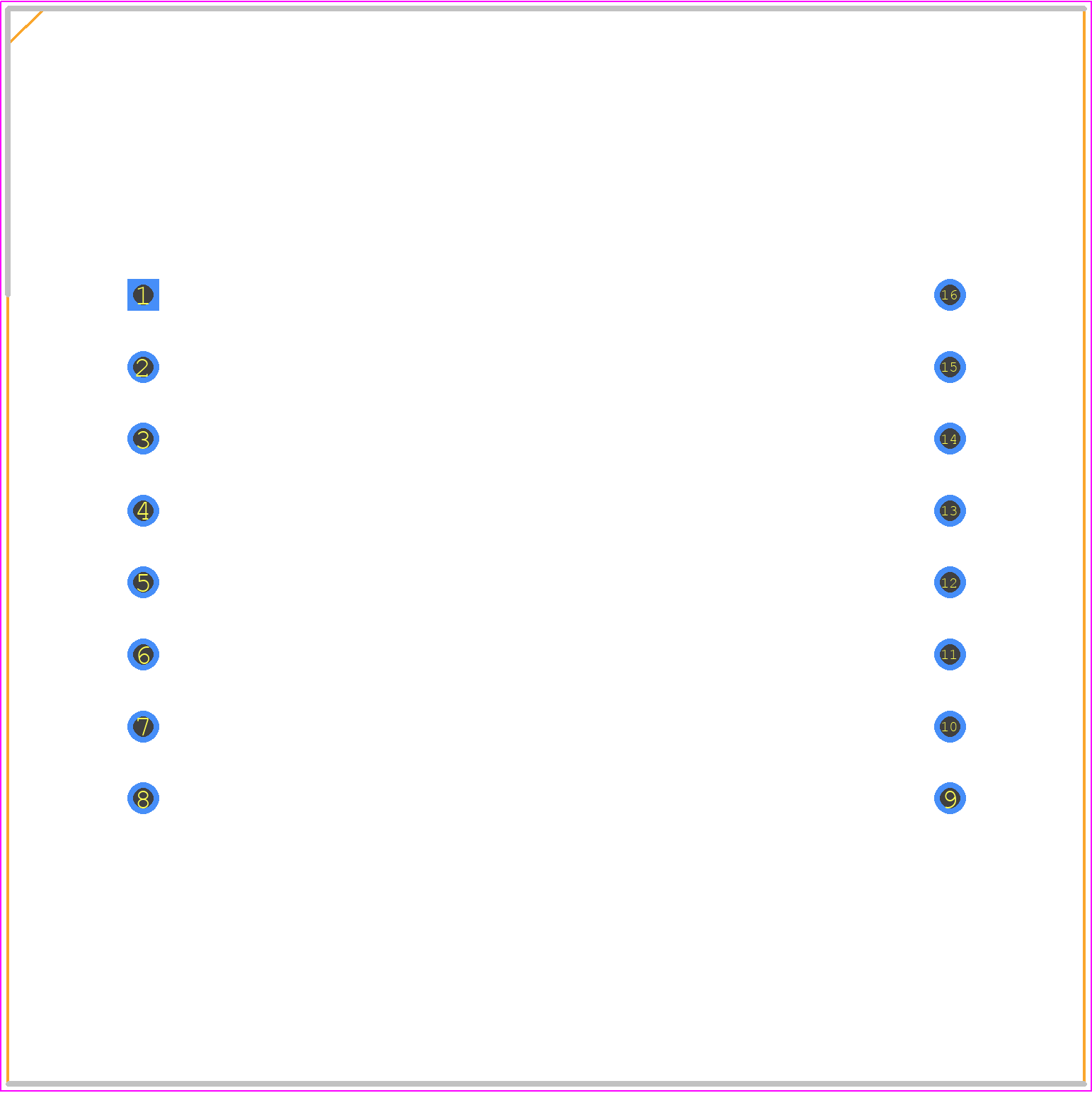

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for OSL641505-BB
- Part Number OSL641505-BB
- Manufacturer OptoSupply
- Pin Count 16
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - DIP-16
- Released Date May 2, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
OSL641505-BB Details
-
Manufacturer Part Number:
OSL641505-BB
-
Manufacturer:
OptoSupply Limited
Trust Checks
Community Provided
System Verified
Community Approved
OSL641505-BB Overview
Use the download button to access the OSL641505-BB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like OSL64,
or try a keyword search, such as Visible LEDs
