OSX05201-B - OptoSupply

Description: Display: LED; bargraph; blue; 50mcd; 10.1x12.7mm; 3.1÷3.6V

Download OSX05201-B Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this OSX05201-B model

Email notifications will be applied after download.

Send part feedback

Symbol

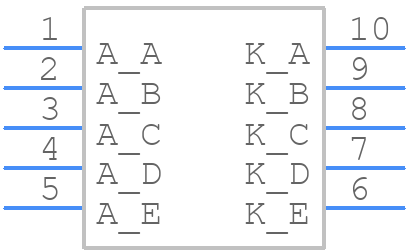

OSX05201-B - OptoSupply - PCB symbol

PCB Footprints

OSX05201-B - OptoSupply PCB footprint - Other - Other - 12.7x10.1x7.8mm

3D Models

OSX05201-B - OptoSupply - 3D model - Other - 12.7x10.1x7.8mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for OSX05201-B
Part Number OSX05201-B
Manufacturer OptoSupply
Pin Count 10
Part Category Display
Package Category Other
Footprint Name Other - 12.7x10.1x7.8mm
Released Date Feb 6, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

OSX05201-B Details

Manufacturer Part Number:
OSX05201-B
Manufacturer:
OptoSupply Limited

Trust Checks

Community Provided

System Verified

Community Approved

OSX05201-B Overview

Use the download button to access the OSX05201-B schematic symbol, PCB footprint, and 3D model.
