OSX10201-RGY1 - OptoSupply

Description: Display: LED; bargraph; red (4x) / green (3x) / yellow (3x)

Download OSX10201-RGY1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this OSX10201-RGY1 model

Email notifications will be applied after download.

Send part feedback

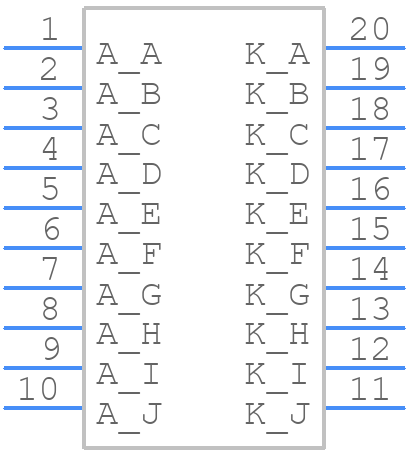

Symbol

OSX10201-RGY1 - OptoSupply - PCB symbol

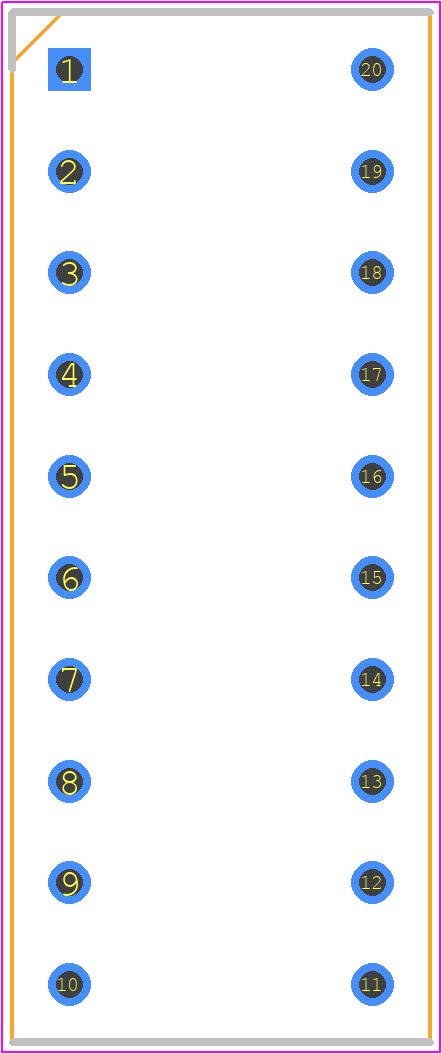

PCB Footprints

OSX10201-RGY1 - OptoSupply PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - OSX10201-RGY1

Datasheet Download Datasheet
Stock & Prices Price & Stock for OSX10201-RGY1
Part Number OSX10201-RGY1
Manufacturer OptoSupply
Pin Count 20
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - OSX10201-RGY1
Released Date Sep 22, 2023
Last Modified Date Sep 22, 2023 9:55 AM UTC
Pinout / Pin List Click Here (Member Only)

OSX10201-RGY1 Details

Manufacturer Part Number:
OSX10201-RGY1
Manufacturer:
OptoSupply Limited

Trust Checks

Community Provided

System Verified

Community Approved

OSX10201-RGY1 Overview

Use the download button to access the OSX10201-RGY1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like OSX10, or try a keyword search, such as Fixed Resistors
