Littelfuse provides a recommended PCB layout and land pattern in their application note AN9313, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal performance and reliability.
To select the correct fuse, consider factors such as the maximum voltage, current, and power rating of your circuit. You should also consider the fuse's interrupting rating, which is the maximum current the fuse can safely interrupt. Littelfuse provides a fuse selection guide on their website to help with this process.
The P0080S3NLRP is a specific model with a unique combination of characteristics, such as its voltage rating, current rating, and interrupting rating. Other similar fuses from Littelfuse may have different ratings or features, such as faster or slower blow times. Be sure to compare the datasheets and specifications to ensure you're selecting the correct fuse for your application.
The P0080S3NLRP has a maximum operating temperature of 125°C. If your application exceeds this temperature, you may need to consider a different fuse or take additional measures to ensure the fuse's reliability and performance. Consult with Littelfuse or a qualified engineer for guidance.
Follow the recommended PCB layout and land pattern, and ensure the fuse is securely soldered to the PCB. Use a soldering process that meets the requirements outlined in the datasheet, and consider using a fuse clip or holder to secure the fuse in place.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
P0080S3NLRP Overview

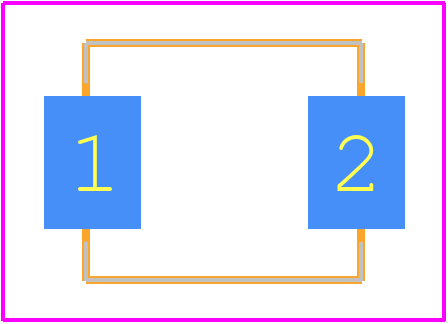

Use the download button to access the P0080S3NLRP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like P0080,
or try a keyword search, such as Silicon Surge Protectors
