P2R-05P - OMRON Electronics

Description: Relay Sockets & Fixings PCB SOCKET G2R-1S

Download P2R-05P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
P2R-05P - OMRON Electronics - PCB symbol
click to zoom

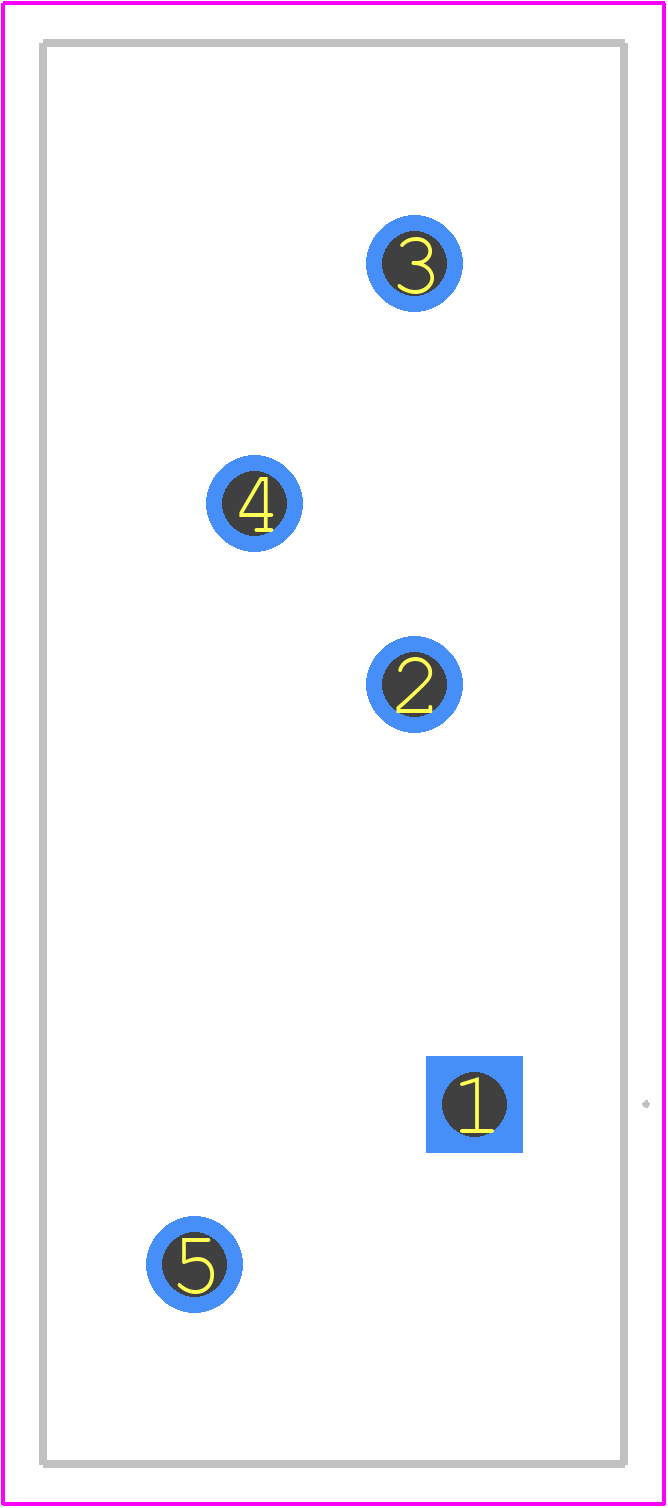

PCB Footprints
P2R-05P - OMRON Electronics PCB footprint - Other - Other - P2R-05P-1
click to zoom
3D Models
P2R-05P - OMRON Electronics - 3D model - Other - P2R-05P-1
click to zoom

P2R-05P Details

  • Manufacturer Part Number:

    P2R-05P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    8

  • Body Breadth:

    0.571 inch

  • Body Depth:

    1.437 inch

  • Body Length:

    1.4 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Current Rating:

    10 A

  • Device Socket Type:

    RELAY SOCKET

  • Device Type Used On:

    RELAY

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    5

  • PCB Contact Pattern:

    STAGGERED

  • Termination Type:

    SOLDER

P2R-05P Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for P2R-05P is -20°C to 60°C (-4°F to 140°F).
  • To ensure reliability in high-vibration environments, it is recommended to use a vibration-resistant mounting method, such as using a bracket or adhesive, and to follow the manufacturer's guidelines for vibration testing.
  • No, the P2R-05P is not designed for use in explosive or hazardous environments. It is intended for general-purpose use in non-hazardous locations.
  • The maximum current rating for the P2R-05P is 5A per contact.
  • Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants from the P2R-05P. Avoid using liquids, chemicals, or abrasive materials that could damage the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

P2R-05P Overview

Use the download button to access the P2R-05P schematic symbol, PCB footprint, and 3D model.
