P2R-08P - OMRON Electronics

Description: OMRON INDUSTRIAL AUTOMATION - P2R-08P - SOCKET, PCB, 8 PIN

Download P2R-08P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
P2R-08P - OMRON Electronics - PCB symbol
click to zoom
PCB Footprints

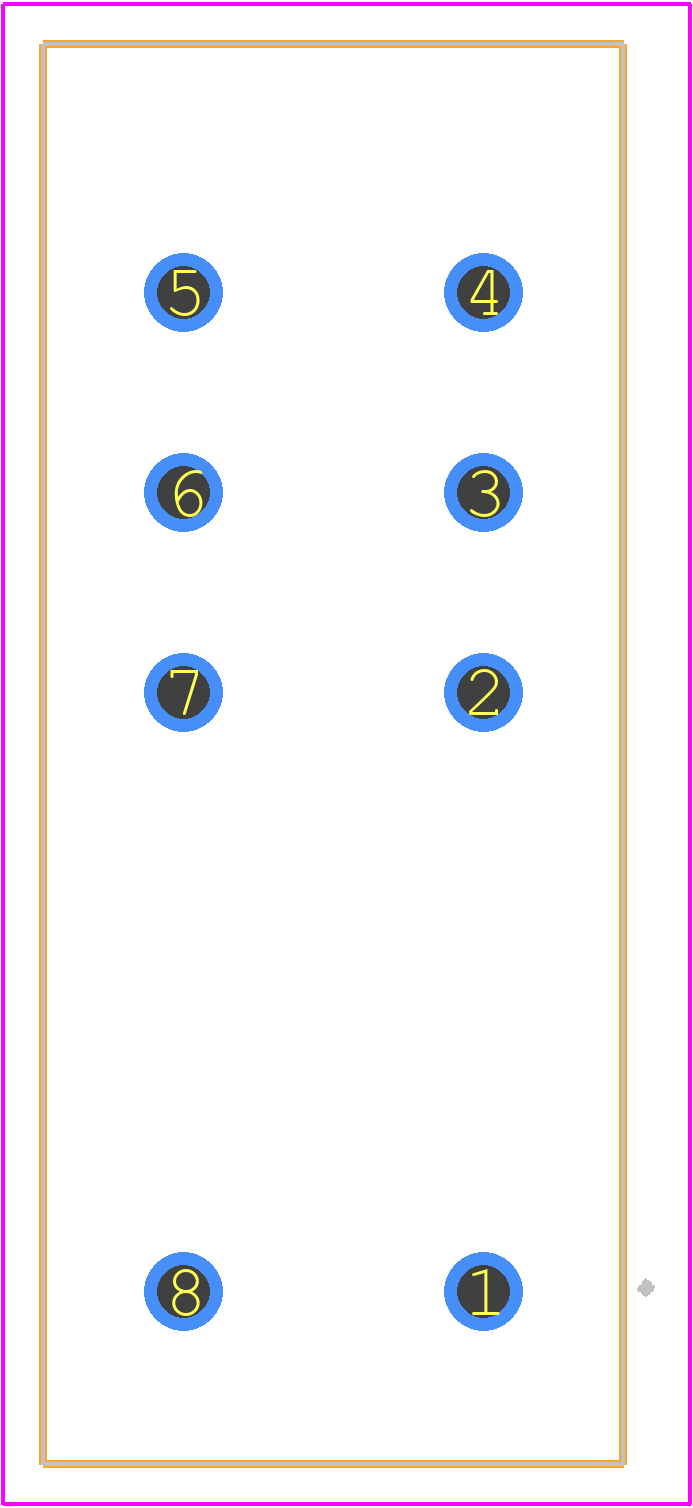

P2R-08P - OMRON Electronics PCB footprint - Other - Other - P2R-08P
click to zoom
3D Models
P2R-08P - OMRON Electronics - 3D model - Other - P2R-08P
click to zoom

P2R-08P Details

  • Manufacturer Part Number:

    P2R-08P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    9 Weeks, 1 Day

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    8

  • Body Breadth:

    0.571 inch

  • Body Depth:

    1.437 inch

  • Body Length:

    1.4 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Current Rating:

    5 A

  • Device Socket Type:

    RELAY SOCKET

  • Device Type Used On:

    RELAY

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    8

  • PCB Contact Pattern:

    RECTANGULAR

  • Termination Type:

    SOLDER

P2R-08P Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the P2R-08P relay is 10 Hz. Exceeding this frequency may reduce the relay's lifespan.
  • Yes, the P2R-08P relay can be used to switch DC loads. However, the relay's contact resistance and switching characteristics may vary depending on the DC voltage and current.
  • Regularly cleaning the relay's contacts with a soft brush or a cotton swab can help remove dirt and contamination. Avoid using chemicals or solvents that may damage the relay's components.
  • The recommended operating temperature range for the P2R-08P relay is -20°C to 70°C. Operating the relay outside this range may affect its performance and lifespan.
  • Yes, the P2R-08P relay is designed to withstand vibrations up to 10 G (10 m/s²). However, excessive vibration may affect the relay's performance and lifespan.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

P2R-08P Overview

Use the download button to access the P2R-08P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like P2R-0, or try a keyword search, such as Sockets and Chip Carriers
