- Part Number P3216-AL
- Manufacturer COILCRAFT
- Pin Count 4
- Part Category Inductor
- Package Category Other

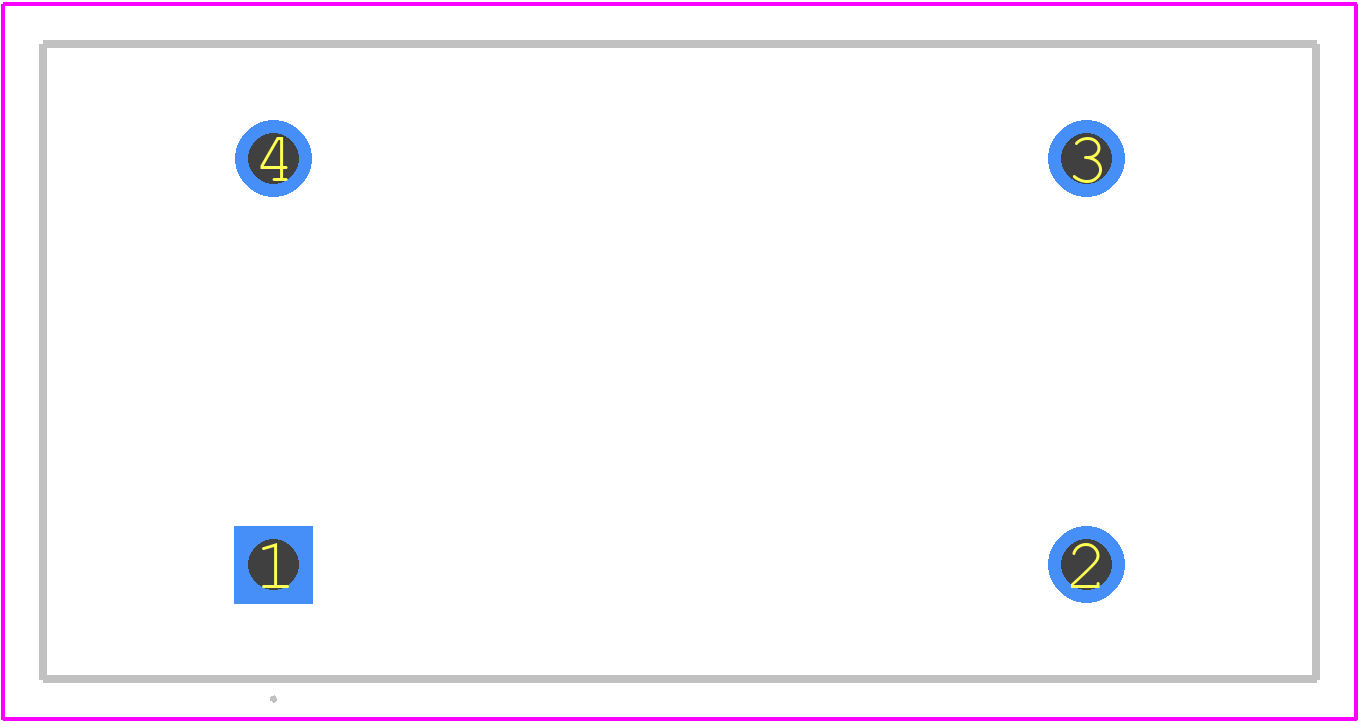

- Footprint Name Other - P3216-AL-2
- Released Date Jan 26, 2023
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
P3216-AL Details
-
Manufacturer Part Number:
P3216-AL
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT PACKAGE-4
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
7
-
Approvals:
UL
-
Filter Type:
SINGLE PHASE EMI FILTER
-
Height:
31.2 mm
-
JESD-609 Code:
e2
P3216-AL Frequently Asked Questions (FAQs)
-
The recommended land pattern for the P3216-AL can be found in Coilcraft's application note AN-20, which provides a detailed guide for PCB layout and land pattern design.
-
To handle the high current rating of the P3216-AL, ensure that your PCB design includes adequate copper thickness, track width, and thermal relief to prevent overheating and ensure reliable operation.
-
While the P3216-AL is rated for operation up to 125°C, it's essential to consider the derating curves provided in the datasheet to ensure the inductor can handle the expected temperature range in your application.
-
To minimize radiated emissions, ensure that your PCB design includes proper shielding, grounding, and decoupling, and consider using a shielded inductor or a common-mode choke in conjunction with the P3216-AL.
-
Follow the guidelines outlined in Coilcraft's application note AN-11, which provides recommendations for storage, handling, and soldering of their inductors, including the P3216-AL.
Trust Checks
Community Provided
System Verified
Community Approved
P3216-AL Overview
Use the download button to access the P3216-AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like P3216,
or try a keyword search, such as Mains Filters
