- Part Number P3717-AL
- Manufacturer COILCRAFT
- Pin Count 4
- Part Category Transformer
- Package Category Other

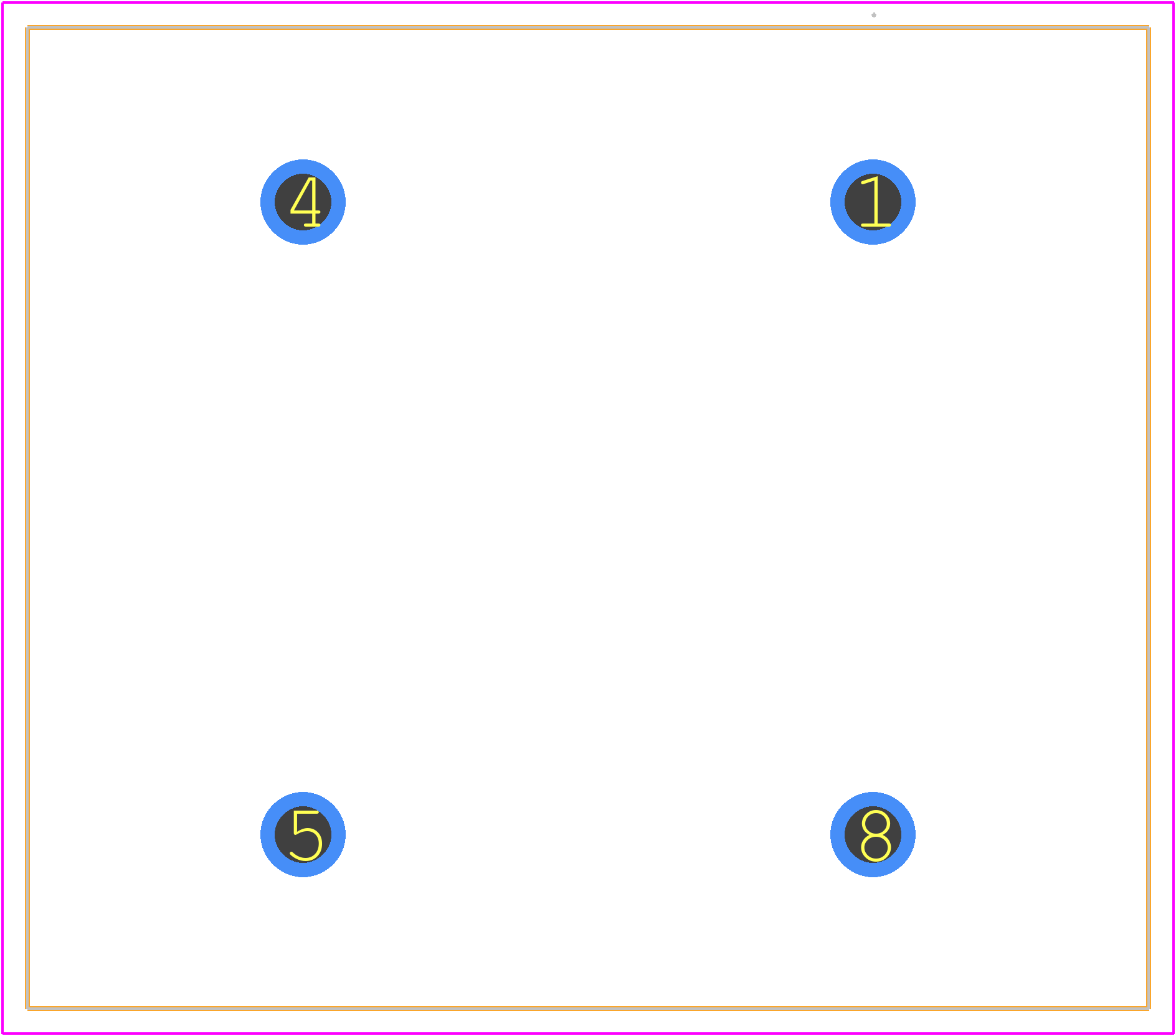

- Footprint Name Other - P3717-AL-2
- Released Date Nov 20, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
P3717-AL Details
-
Manufacturer Part Number:
P3717-AL
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT PACKAGE-8/4
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
7
-
Filter Type:
SINGLE PHASE EMI FILTER
-
Height:
33 mm
-
Length:
44.5 mm
-
Mounting Type:
THROUGH HOLE MOUNT
