The recommended PCB layout for the P4800MEL involves keeping the traces as short as possible, using a solid ground plane, and placing the device close to the power source to minimize inductance. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a reflow oven or a hot air gun to solder the device, and avoid applying excessive force or pressure during the soldering process.
The maximum operating temperature range for the P4800MEL is -40°C to 150°C, with a maximum junction temperature of 150°C. However, it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance and reliability.
Yes, the P4800MEL is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB. Additionally, consider using a vibration-dampening material or a shock-absorbing mount to minimize the effects of vibration.
To troubleshoot issues with the P4800MEL, start by checking the power supply voltage, ensuring it's within the recommended range. Next, verify that the device is properly soldered and mounted to the PCB. Use a multimeter to measure the voltage and current at the input and output pins, and check for any signs of overheating or physical damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
P4800MEL Overview

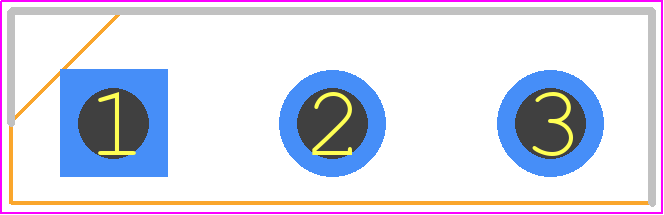

Use the download button to access the P4800MEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like P4800,
or try a keyword search, such as Silicon Surge Protectors
