P50-030S-R1-EA - 3M

Description: 30 Position Connector Socket, Outer Shroud Contacts Through Hole Gold 0.5 A,>1x10⁹ Ω @ 500 VDC,650 Vrms

Download P50-030S-R1-EA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

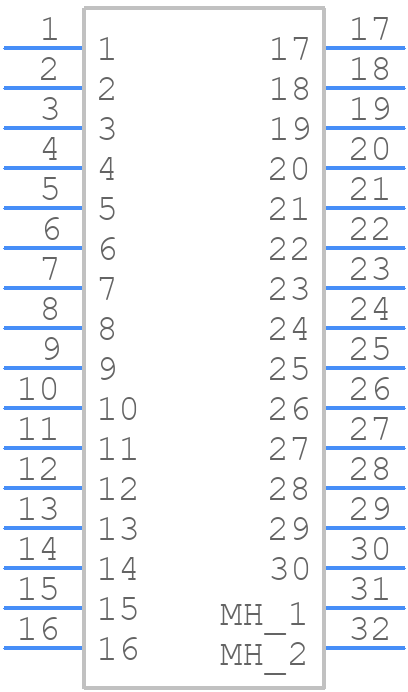

P50-030S-R1-EA - 3M - PCB symbol
click to zoom
PCB Footprints

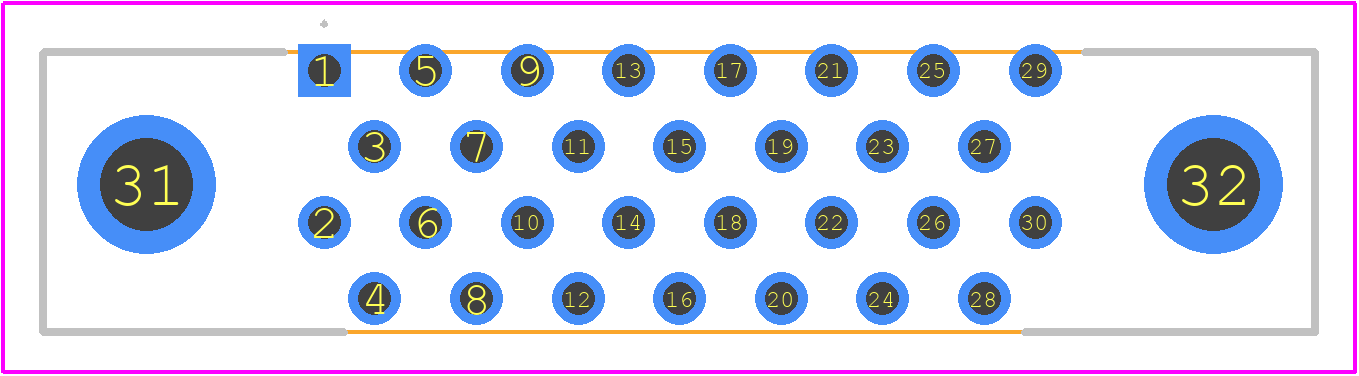

P50-030S-R1-EA - 3M PCB footprint - Other - Other - P50-030S-R1-EA-6
click to zoom
3D Models
P50-030S-R1-EA - 3M - 3D model - Other - P50-030S-R1-EA-6
click to zoom

P50-030S-R1-EA Details

  • Manufacturer Part Number:

    P50-030S-R1-EA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    9.15

  • Additional Feature:

    3M, PANEL MOUNTABLE

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

P50-030S-R1-EA Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, the P50-030S-R1-EA is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and securing of the connector.
  • The P50-030S-R1-EA has a rating of IP67, which means it's protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor use.
  • The maximum operating temperature for the P50-030S-R1-EA is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • While the datasheet specifies 24-30 AWG wire sizes, it's possible to use other wire sizes with the P50-030S-R1-EA. However, it's essential to ensure the wire size is compatible with the connector's terminal design and to follow the manufacturer's guidelines for wire stripping and termination.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

P50-030S-R1-EA Overview

Use the download button to access the P50-030S-R1-EA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like P50-0, or try a keyword search, such as Headers and Edge Type Connectors
