P50-060S-R1-EA - 3M

Description: Board to Board & Mezzanine Connectors PAK50 SKT 60 POS

Download P50-060S-R1-EA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
P50-060S-R1-EA - 3M - PCB symbol
click to zoom
PCB Footprints

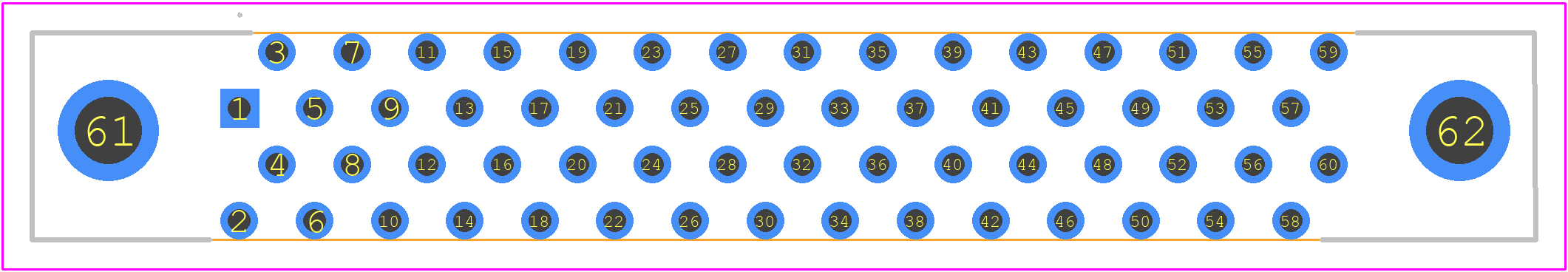

P50-060S-R1-EA - 3M PCB footprint - Other - Other - P50-060S-R1-EA-2
click to zoom
3D Models
P50-060S-R1-EA - 3M - 3D model - Other - P50-060S-R1-EA-2
click to zoom

P50-060S-R1-EA Details

  • Manufacturer Part Number:

    P50-060S-R1-EA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    9.15

  • Additional Feature:

    3M, PANEL MOUNTABLE

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    60

  • UL Flammability Code:

    94V-0
