P522304 - Kyocera AVX

Description: 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz CDMA, DCS, GSM, PCS, UMTS, WCDMA Chip RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz 1.4dBi, 1.2dBi, 1.8dBi, 1.1dBi, 2.5dBi Solder Surface Mount

Download P522304 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

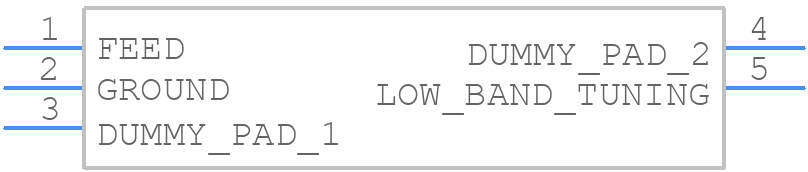

P522304 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

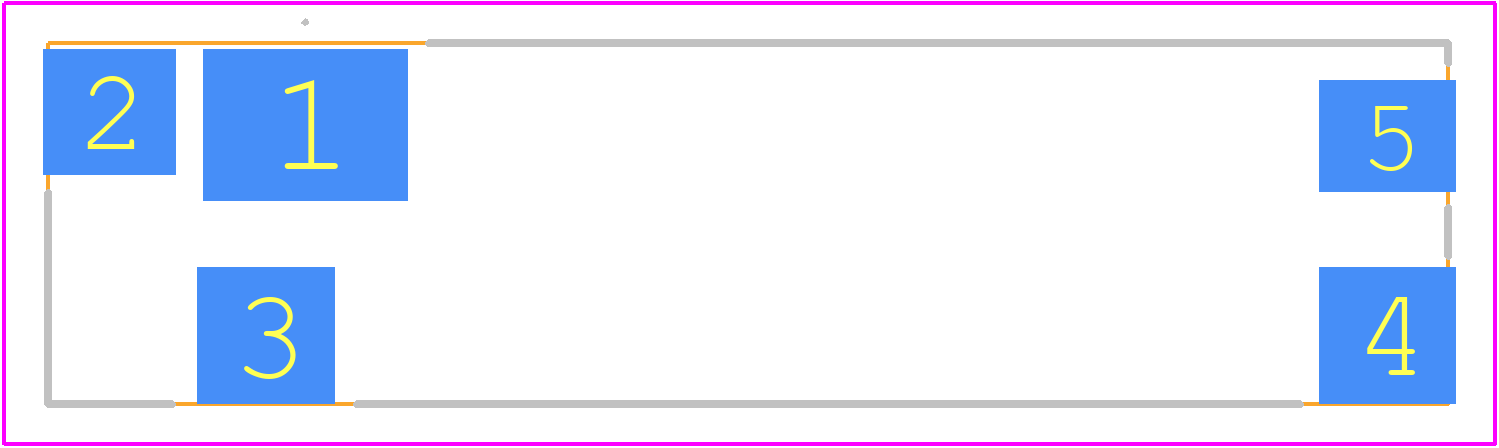

P522304 - Kyocera AVX PCB footprint - Other - Other - P522304-2
click to zoom
3D Models
P522304 - Kyocera AVX - 3D model - Other - P522304-2
click to zoom

P522304 Details

  • Manufacturer Part Number:

    P522304

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6

  • Additional Feature:

    IT CAN ALSO OPERATE AT 1710 TO 2170 MHZ

  • Application:

    3G/CELLULAR/IOT/LORA/LPWA/LTE/RPMA/SIGFOX

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    5

  • Omnidirectional:

    YES

  • Operating Frequency-Max:

    960 MHz

  • Operating Frequency-Min:

    824 MHz

  • Polarization:

    LINEAR

  • RF/Microwave Device Type:

    MOBILE STATION ANTENNA

  • Surface Mount:

    YES

  • Transmission Power-Max:

    2 W

  • VSWR-Max:

    2.7

P522304 Frequently Asked Questions (FAQs)

  • The recommended land pattern for P522304 can be found in the Kyocera AVX Components' recommended land pattern document or by consulting with a Kyocera AVX Components' application engineer.
  • Handle the component by the body, avoiding touching the terminations. Use anti-static wrist straps, mats, or tables to prevent electrostatic discharge damage. Follow standard SMT assembly procedures.
  • The maximum reflow temperature for P522304 is 260°C, with a recommended reflow profile of 3°C/sec ramp rate, 240°C peak temperature, and 30-second dwell time.
  • Yes, P522304 is designed to withstand vibrations. However, it's essential to follow proper mounting and soldering techniques to ensure the component's reliability in high-vibration applications.
  • The correct orientation of P522304 is indicated by the marking on the top of the component. Ensure the marking is aligned with the corresponding marking on the PCB.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

P522304 Overview

Use the download button to access the P522304 schematic symbol, PCB footprint, and 3D model.
