Part Image

P6KE12A-TP - MCC

Description: TVS

Download P6KE12A-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
P6KE12A-TP - MCC - PCB symbol
click to zoom
PCB Footprints

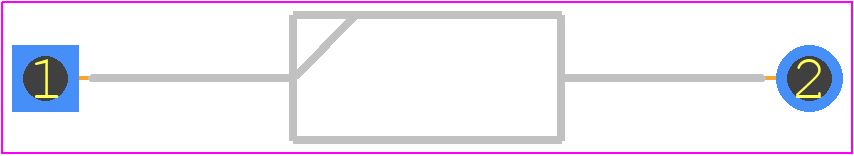

P6KE12A-TP - MCC PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - DO-15
click to zoom
3D Models
P6KE12A-TP - MCC - 3D model - Diodes, Axial Diameter Horizontal Mounting - DO-15
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for P6KE12A-TP
  • Part Number P6KE12A-TP
  • Manufacturer MCC
  • Pin Count 2
  • Part Category TVS Diode (Uni-directional)
  • Package Category Diodes, Axial Diameter Horizontal Mounting
  • Footprint Name Diodes, Axial Diameter Horizontal Mounting - DO-15
  • Released Date Jan 10, 2024
  • Last Modified Date May 17, 2024 4:34 PM UTC
  • Pinout / Pin List Click Here (Member Only)

P6KE12A-TP Details

  • Manufacturer Part Number:

    P6KE12A-TP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DO-15

  • Package Description:

    ROHS COMPLIANT, PLASTIC PACKAGE-2

  • Pin Count:

    2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6.03

  • Breakdown Voltage-Max:

    12.6 V

  • Breakdown Voltage-Min:

    11.4 V

  • Breakdown Voltage-Nom:

    12 V

  • Case Connection:

    ISOLATED

  • Clamping Voltage-Max:

    16.7 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    DO-15

  • JESD-30 Code:

    O-PALF-W2

  • JESD-609 Code:

    e3

  • Non-rep Peak Rev Power Dis-Max:

    600 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Packing Method:

    BULK

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    5 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    10.2 V

  • Surface Mount:

    NO

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

  • Time@Peak Reflow Temperature-Max (s):

    10

P6KE12A-TP Frequently Asked Questions (FAQs)

  • The recommended footprint and land pattern for P6KE12A-TP can be found in the Micro Commercial Components' application note or packaging specification document, which provides detailed guidelines for PCB layout and assembly.
  • To handle the static sensitive nature of P6KE12A-TP, it is recommended to follow proper ESD handling procedures, such as using anti-static wrist straps, mats, and packaging materials, and ensuring that the assembly area is static-free.
  • The maximum allowable voltage derating for P6KE12A-TP depends on the specific application and operating conditions. As a general rule, it is recommended to derate the voltage by 10-20% to ensure reliable operation and to account for any voltage spikes or transients.
  • While P6KE12A-TP has a maximum operating temperature of 150°C, it is not recommended for use in high-temperature applications above 125°C without proper derating and thermal management. Consult the datasheet and application notes for more information.
  • To ensure the reliability and longevity of P6KE12A-TP, it is recommended to follow proper design and assembly guidelines, including selecting the correct voltage and current ratings, providing adequate heat sinking, and ensuring that the device is operated within its specified parameters.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

P6KE12A-TP Overview

Use the download button to access the P6KE12A-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like P6KE1, or try a keyword search, such as Transient Suppressors
