LEAD FREE, PLASTIC, SURMETIC40, CASE 017AA-01, 2 PIN
Pin Count:
0
Manufacturer Package Code:
017AA
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Factory Lead Time:
4 Weeks
Manufacturer:
onsemi
Additional Feature:
EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY
Breakdown Voltage-Max:
45.2 V
Breakdown Voltage-Min:
40.9 V
Breakdown Voltage-Nom:
43.05 V
Case Connection:
ISOLATED
Clamping Voltage-Max:
59.3 V
Configuration:
SINGLE
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 Code:
O-PALF-W2
JESD-609 Code:
e3
Non-rep Peak Rev Power Dis-Max:
600 W
Number of Elements:
1
Number of Terminals:
2
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
ROUND
Package Style:
LONG FORM
Peak Reflow Temperature (Cel):
260
Polarity:
UNIDIRECTIONAL
Power Dissipation-Max:
5 W
Qualification Status:
Not Qualified
Reference Standard:
UL RECOGNIZED
Rep Pk Reverse Voltage-Max:
36.8 V
Surface Mount:
NO
Technology:
AVALANCHE
Terminal Finish:
Tin (Sn)
Terminal Form:
WIRE
Terminal Position:
AXIAL
Time@Peak Reflow Temperature-Max (s):
40
P6KE43AG Frequently Asked Questions (FAQs)
The recommended footprint and land pattern for P6KE43AG can be found in the onsemi application note AND8308/D, which provides guidelines for surface mount assembly of TVS diodes.
To select the correct TVS diode, consider the following factors: voltage rating, peak pulse power, clamping voltage, and response time. The P6KE43AG has a voltage rating of 43V, peak pulse power of 600W, and a clamping voltage of 64.5V. Ensure that these parameters meet your application's requirements.
A unidirectional TVS diode, like the P6KE43AG, protects against positive voltage surges, while a bidirectional TVS diode protects against both positive and negative voltage surges. Choose a unidirectional TVS diode if you only need to protect against positive surges, and a bidirectional TVS diode if you need to protect against both positive and negative surges.
The P6KE43AG is a commercial-grade TVS diode, but onsemi offers automotive-grade and high-reliability versions of TVS diodes, such as the P6KE43AQP or P6KE43AHF, which meet the requirements of AEC-Q101 and other industry standards. Ensure that you select the correct grade of TVS diode for your application.
Follow the recommended soldering and assembly guidelines provided in the onsemi application note AND8308/D, which includes information on soldering temperatures, times, and techniques, as well as handling and storage recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
P6KE43AG Overview

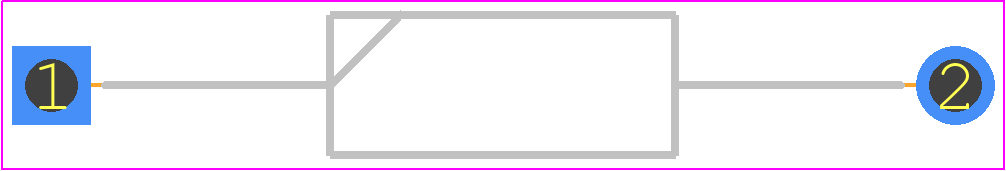

Use the download button to access the P6KE43AG schematic symbol, PCB footprint, and 3D model.
