The recommended footprint and land pattern for P6KE6.8CA-E3/54 can be found in the Vishay Intertechnologies' application note AN483, which provides guidelines for surface mount assembly of diodes and rectifiers.
To handle the static sensitive nature of P6KE6.8CA-E3/54, it is recommended to follow proper ESD handling procedures, such as using anti-static wrist straps, mats, and bags, and ensuring that the workspace is ESD-safe.
The maximum operating temperature range for P6KE6.8CA-E3/54 is -55°C to 175°C, as specified in the datasheet. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
Yes, P6KE6.8CA-E3/54 is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality construction and rigorous testing procedures.
To ensure the reliability of P6KE6.8CA-E3/54 in a high-vibration environment, it is recommended to follow proper mounting and soldering techniques, and to consider using additional mechanical support or potting compounds to secure the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
P6KE6.8CA-E3/54 Overview

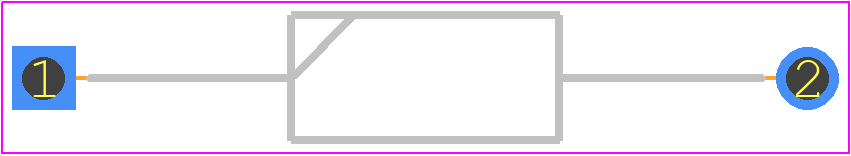

Use the download button to access the P6KE6.8CA-E3/54 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like P6KE6,
or try a keyword search, such as Transient Suppressors
