P7SA-10P - OMRON Electronics

Description: Relay Sockets PC Pin 6A Through Hole 4Pole

Download P7SA-10P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

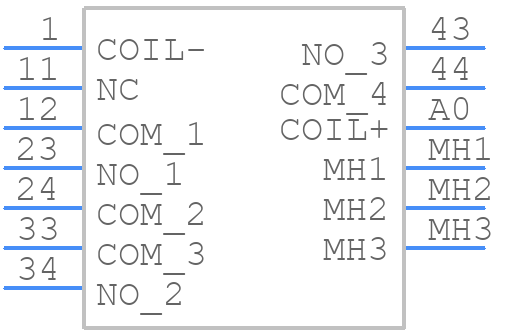

P7SA-10P - OMRON Electronics - PCB symbol
click to zoom
PCB Footprints

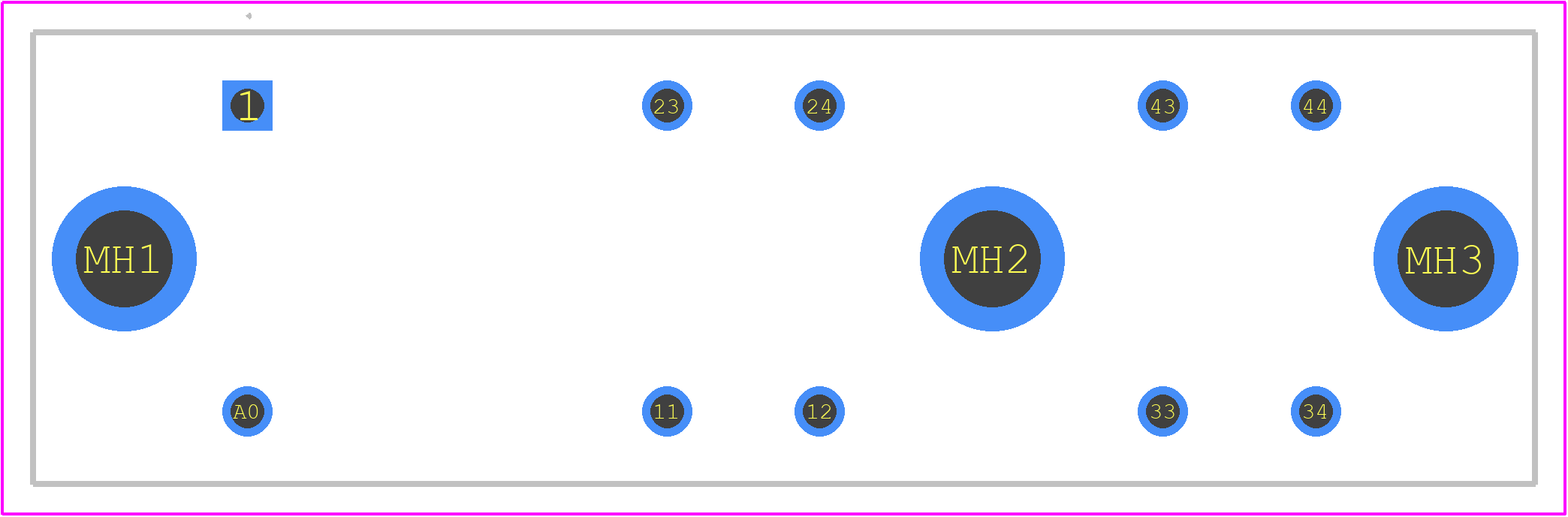

P7SA-10P - OMRON Electronics PCB footprint - Other - Other - P7SA-10P-1
click to zoom
3D Models
P7SA-10P - OMRON Electronics - 3D model - Other - P7SA-10P-1
click to zoom

P7SA-10P Details

  • Manufacturer Part Number:

    P7SA-10P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    OMRON Electronic Components

  • YTEOL:

    7.53

  • Additional Feature:

    APPROVALS: CE; CQC; CSA; SEMKO; UL; VDE

  • Body Breadth:

    0.591 inch

  • Body Depth:

    1.634 inch

  • Body Length:

    1.969 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Current Rating:

    6 A

  • Device Socket Type:

    RELAY SOCKET

  • Device Type Used On:

    RELAY

  • Dielectric Withstanding Voltage:

    1500VAC V

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.2 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.4 mm

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

P7SA-10P Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the P7SA-10P is -25°C to 85°C.
  • To ensure reliability in high-vibration environments, it is recommended to use a vibration-resistant mounting method, such as a screw or adhesive, and to follow the recommended torque values for the screw terminals.
  • The P7SA-10P is not intended for use in safety-critical applications. If you need a safety-certified relay, please consider using a relay that meets the relevant safety standards, such as IEC 61508 or UL 508.
  • To prevent EMI, it is recommended to use a shielded cable, keep the relay away from high-frequency sources, and use a ferrite bead or common-mode choke to filter out high-frequency noise.
  • The maximum switching frequency of the P7SA-10P is 20 Hz. Exceeding this frequency may reduce the relay's lifespan.
