P89C669FA - NXP

Description: 8051 89C Microcontroller IC 8-Bit 24MHz 96KB (96K x 8) FLASH 44-PLCC (16.59x16.59)

Download P89C669FA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

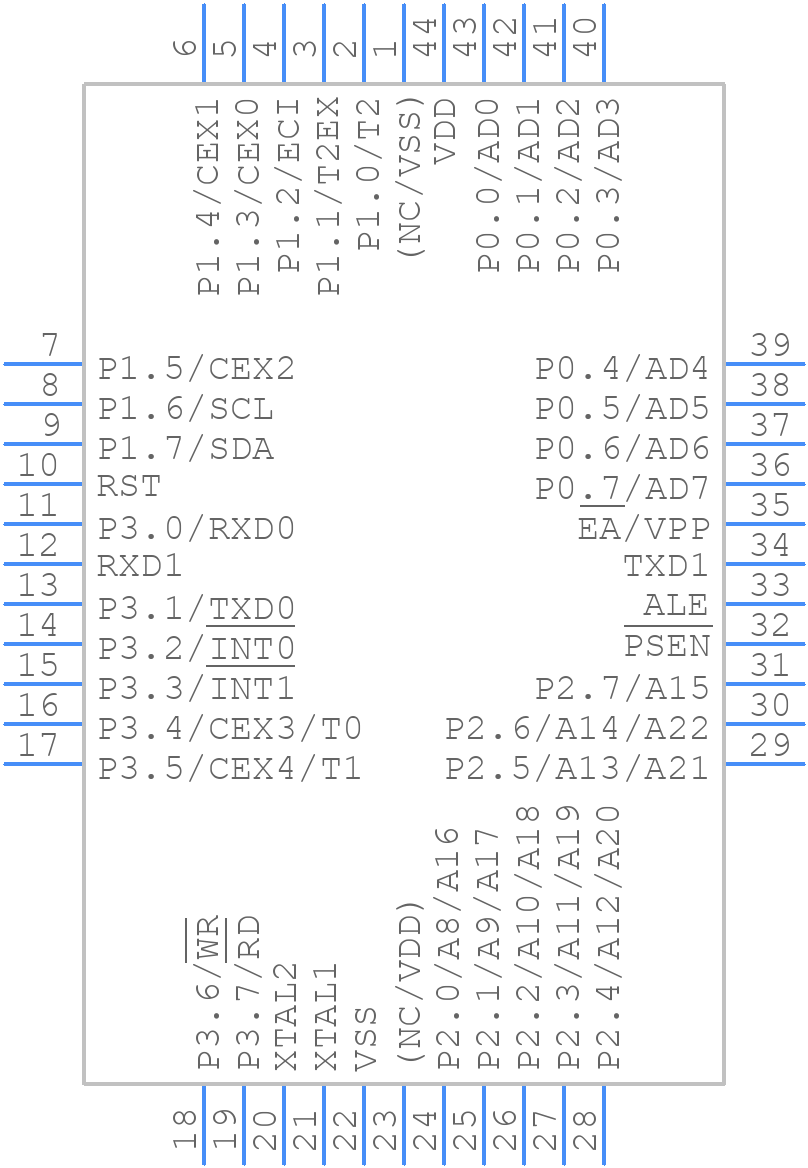

Symbol
P89C669FA - NXP - PCB symbol
click to zoom
PCB Footprints
P89C669FA - NXP PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - SOT187-2
click to zoom
3D Models
P89C669FA - NXP - 3D model - Plastic Leaded Chip Carrier - SOT187-2
click to zoom

P89C669FA Details

  • Manufacturer Part Number:

    P89C669FA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LPCC

  • Package Description:

    PLASTIC, MS-018, SOT-187-2, LCC-44

  • Pin Count:

    44

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Has ADC:

    NO

  • Address Bus Width:

    23

  • Bit Size:

    8

  • Boundary Scan:

    YES

  • CPU Family:

    8051

  • Clock Frequency-Max:

    24 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • External Data Bus Width:

    8

  • JESD-30 Code:

    S-PQCC-J44

  • Length:

    16.585 mm

  • Number of I/O Lines:

    32

  • Number of Terminals:

    44

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC44,.7SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    2048

  • ROM (words):

    98304

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    4.57 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    71.8 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    16.585 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

P89C669FA Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the P89C669FA is 60 MHz, but it can be overclocked up to 75 MHz with careful consideration of power supply and thermal management.
  • NXP provides a bootloader example code in their LPC900 microcontroller family documentation. You can use this as a starting point and modify it according to your specific requirements. Additionally, you can use third-party bootloader solutions like ISP (In-System Programming) or IAP (In-Application Programming).
  • Yes, the P89C669FA can operate with a 3.3V power supply, but you need to ensure that the voltage regulator and other external components are compatible with the 3.3V supply. Additionally, you may need to adjust the clock frequency and other settings to ensure reliable operation.
  • You can use a JTAG interface like the NXP LPC-Link or a third-party debugger like the Segger J-Link to debug the P89C669FA. You need to connect the JTAG pins to the debugger and use a software tool like Keil µVision or IAR Embedded Workbench to debug your code.
  • Yes, the P89C669FA can be used with an external crystal oscillator. You need to connect the crystal oscillator to the XTAL1 and XTAL2 pins and configure the microcontroller to use the external oscillator as the clock source.
