Description:The P9242-R3 is a highly-integrated 15W magnetic induction wireless power transmitter with in-band, bi-directional data communication requiring no additional circuitry. The communication channel can be used for proprietary device authentication and secure system data transfer.The P9242-R3 includes a 32-bit ARM® Cortex®-M0 processor, foreign object detection (FOD), wide input voltage range operation, full bridge drivers, and on-chip simultaneous voltage and current demodulation.In addition, the P9242-R3 fea
Renesas provides a reference design guide for the P9242-RBNDGI, which includes recommendations for PCB layout, thermal management, and component placement to ensure optimal performance and thermal dissipation.
The P9242-RBNDGI has a built-in power-on reset (POR) circuit, but external power sequencing and voltage monitoring can be implemented using external components and ICs, such as voltage supervisors and power sequencers, to ensure proper power-up and power-down sequences.
Renesas provides guidelines for EMI and EMC considerations in the datasheet and application notes, including recommendations for PCB layout, shielding, and filtering to minimize electromagnetic interference and ensure compliance with regulatory standards.
Renesas provides a range of debugging tools and resources, including evaluation boards, software development kits, and technical support, to help engineers troubleshoot and debug issues with the P9242-RBNDGI.
Renesas provides reliability and quality metrics for the P9242-RBNDGI, including MTBF (mean time between failures), FIT (failure in time), and other quality and reliability data, which can be obtained through the Renesas website or by contacting their sales and support teams.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
P9242-RBNDGI Overview

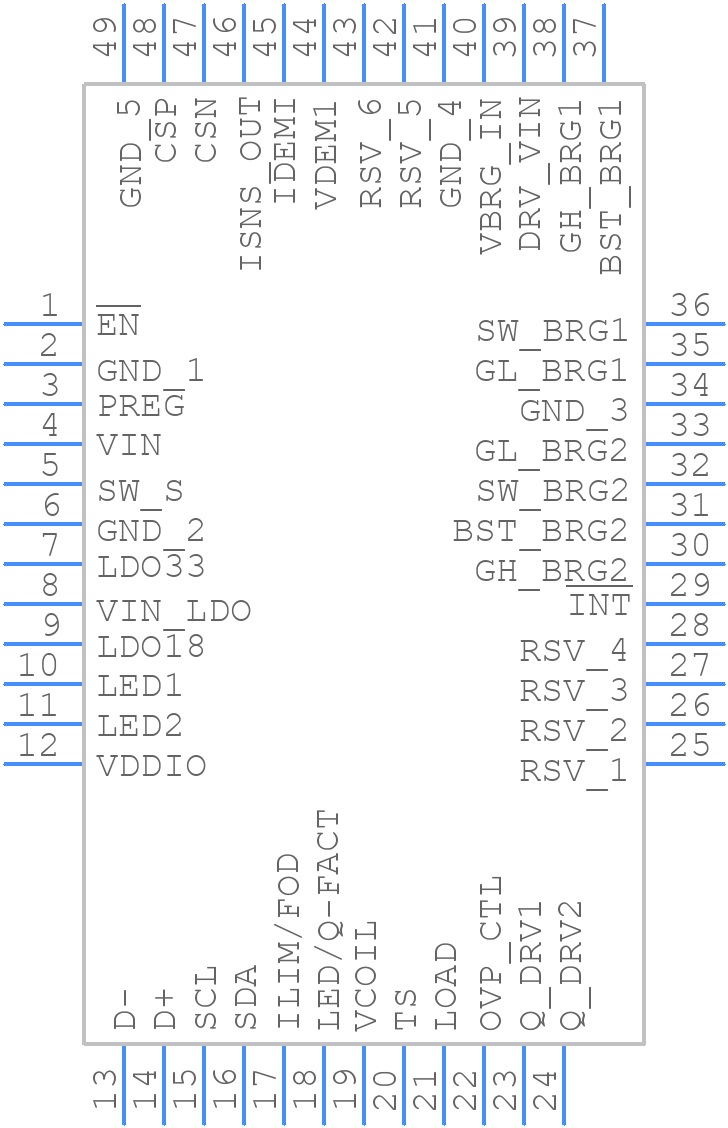

Use the download button to access the P9242-RBNDGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like P9242,
or try a keyword search, such as Power Management Circuits
