Description:The PA02 is a 5A, 38V power operational amplifier with a very high 350kHz power bandwidth designed to drive resistive, inductive and capacitive loads such as motor, valve and actuator controls. The PA02 provides a complementary “collector output” stage that can swing close to the supply rails and is protected against inductive kickback. Low crossover distortion and internal losses as low as 1.2V at 2A make this device very efficient when system voltages are low and power is at a premium. The PA02A is the A
A good PCB layout for the PA02A should minimize parasitic inductance and capacitance. Use a ground plane, keep signal traces short and wide, and avoid vias under the device. Apex Microtechnology provides a recommended layout in their application notes.
To ensure stability, follow the recommended compensation network values, and consider adding a small capacitor (e.g., 10nF) between the output and ground. Additionally, ensure the input and output impedances are matched, and the layout is well-decoupled.
The PA02A's SOA is not explicitly stated in the datasheet. However, Apex Microtechnology recommends operating the device within the specified voltage and current limits to prevent damage. Consult the application notes for guidance on thermal management and power dissipation.
While the PA02A is primarily a voltage amplifier, it can be used as a current amplifier with some limitations. However, the output current is limited by the device's power rating and thermal constraints. Consult Apex Microtechnology's application notes for guidance on current amplification.
Use voltage and current limiting circuits to protect the PA02A from overvoltage and overcurrent conditions. Apex Microtechnology recommends using external protection devices, such as TVS diodes or fuses, to prevent damage from voltage spikes or excessive current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PA02A Overview

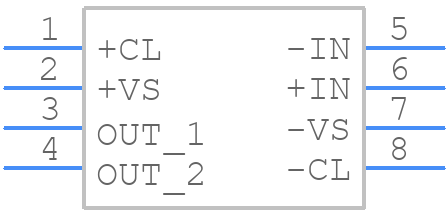

Use the download button to access the PA02A schematic symbol, PCB footprint, and 3D model.
